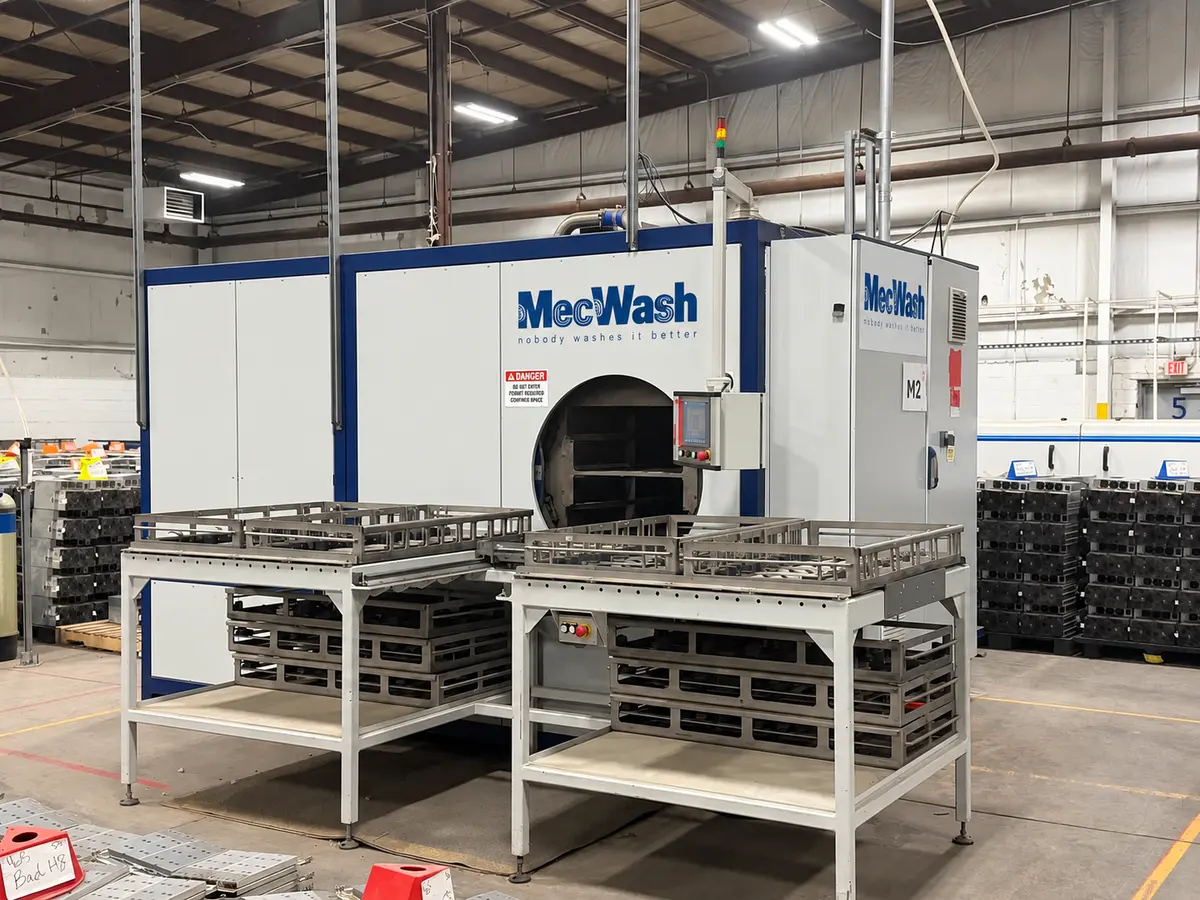

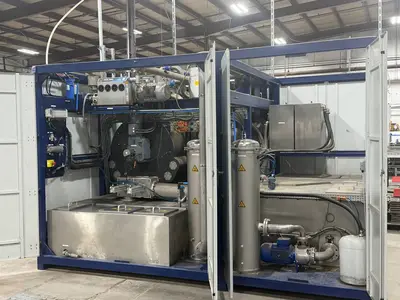

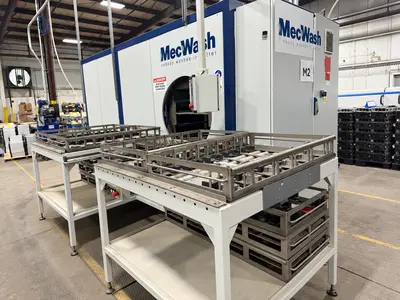

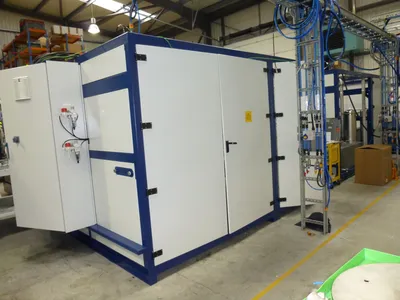

USED MECWASH MAXI 1200 Aqueous Cleaning System & Vacuum Drying System

CONSTRUCTION

The process chamber, solution tanks, pumps, filters, valves, piping and other components in contact with the process solutions are constructed from stainless steel or other suitable corrosion-resistant materials.

MACHINE SERVICES
Electrical Supply: 480 Volt / 3 Phase / 60 Hz
Control Voltage: 24 VDC

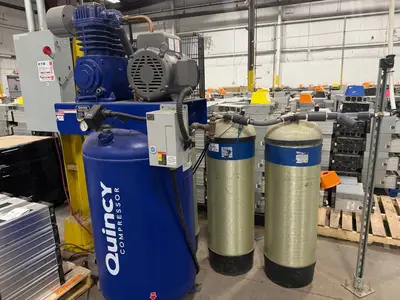

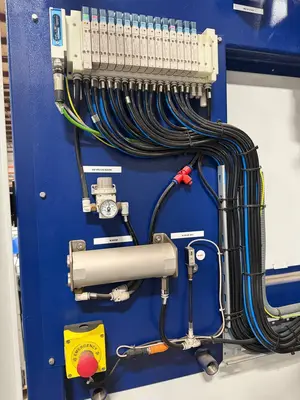

Compressed Air: Minimum approximately 75 PSI
Water Connection: 3/4" BSP
Water Pressure: 3–5 Bar
Minimum Water Flow: 25 L/Min
Drain Connection: 1" BSP
Remote Access Connection: RJ45 Ethernet

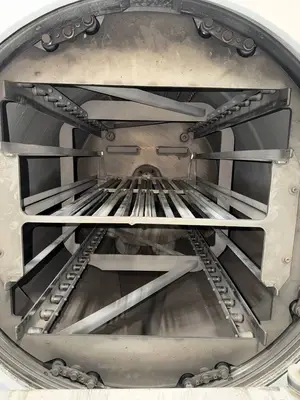

PROCESS CHAMBER & LOAD CAPACITY
Process Chamber: 23" W x 25" H x 48" L
Maximum Workload: 440 lbs.
Variable Rotation Speed: 2–10 RPM
Rotation, Oscillation and Stationary Processing Capability
180° Indexing Chamber

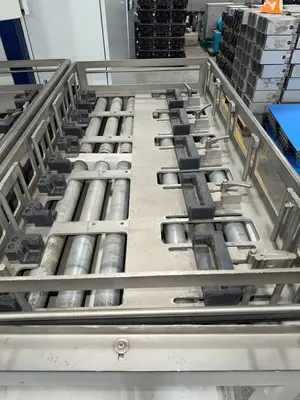

Central Dividing Shelf
Two-fixture processing configuration
Load Height: Approximately 43"

The 180° indexing arrangement allows one fixture to be loaded, the chamber indexed, and a second fixture loaded on the opposite side of the central dividing shelf for simultaneous processing.

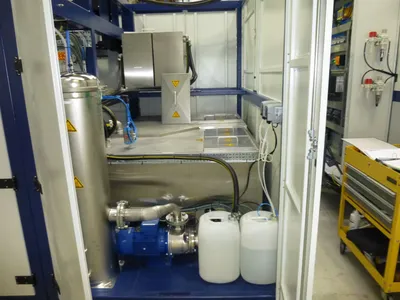

WASH SYSTEM
Recirculating Heated Flood/Immersion Wash
High-Volume Recirculating Spray Wash
Wash Tank Capacity: 315 Gallons
Wash Tank Heat: 36 kW
Maximum Wash Temperature: 194°F
Wash Pump: 3 HP
Wash Flow Rate: 185 GPM
Spray Pressure: 15 PSI
500-Micron Stainless-Steel Mesh Strainer
30-Micron In-Line Cartridge Filtration
Oil Separation System
Automatic Wash Chemical Dosing
Automatic Water Level/Top-Up

The system is designed to rotate or oscillate the workload during processing while utilizing a combination of flood and high-volume/low-pressure spray cleaning to provide solution penetration into complex component geometries.

RINSE SYSTEM
Recirculating Heated Flood/Immersion Rinse
Recirculating Spray Rinse
Rinse Tank Capacity: 264 Gallons
Rinse Tank Heat: 18 kW
Maximum Rinse Temperature: 194°F
Rinse Pump: 3 HP
Rinse Flow Rate: 185 GPM
Spray Pressure: 15 PSI
500-Micron Stainless-Steel Mesh Strainer
10-Micron In-Line Cartridge Filtration
Oil Separation System
Automatic Rinse Chemical Dosing
HIGH-VELOCITY HOT-AIR DRYING
Rotational High-Velocity Hot-Air Dry
3 HP Drying Blower
Approximately 206 CFM
12 kW Air Heater
Maximum Air Temperature: 285°F

The workload can continue to rotate during the drying cycle, promoting drainage of retained water from component recesses and complex geometries.

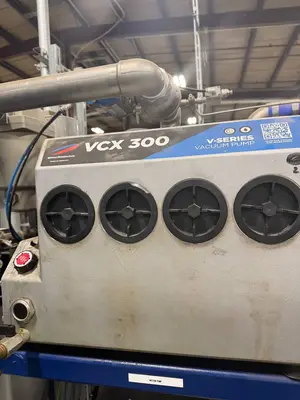

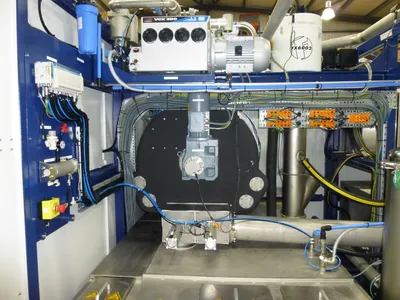

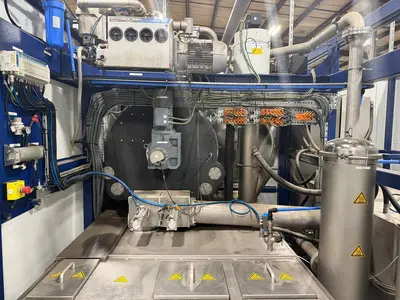

VACUUM DRYING

Equipped with an integrated rotational vacuum drying system designed to assist in removing residual moisture from blind holes, recesses, close-fitting surfaces and other areas where water may be retained through capillary action.

Vacuum Pump Rating: 4 kW
Vacuum Level: Less than 50 mbar absolute

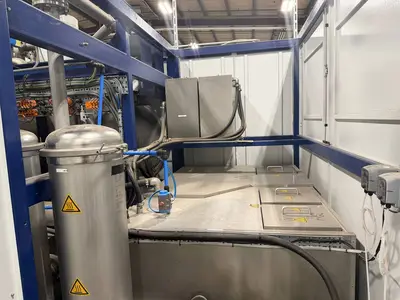

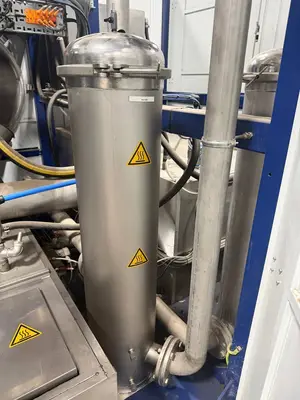

FILTRATION & SOLUTION MANAGEMENT

The machine incorporates separate filtration and solution-management systems for both the wash and rinse stages.

Wash Filtration:
500-Micron Stainless-Steel Strainer → 30-Micron Cartridge Filtration → Oil Separation

Rinse Filtration:
500-Micron Stainless-Steel Strainer → 10-Micron Cartridge Filtration → Oil Separation

Both wash and rinse solutions are heated and recirculated.

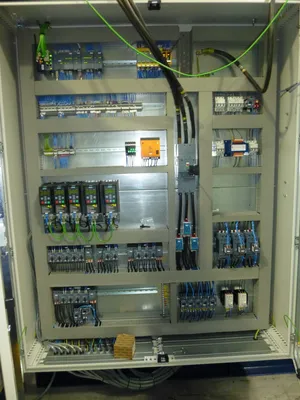

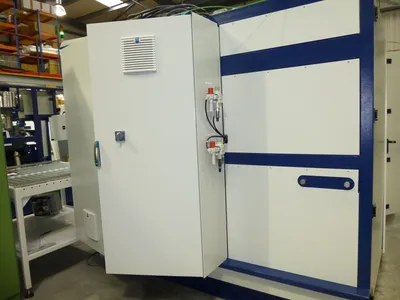

CONTROLS
Programmable PLC-Based Machine Control
Multiple Programmable Process Recipes
Six Standard Preset/Variable Programs
Password-Protected Program Modification
Programmable Process Stage Times
Programmable Rotation Speeds
Programmable Temperature Settings
Real-Time Process Display
Fault Diagnostics and Fault History
Filter and Temperature Alarms
Chemical Feed Monitoring
24-Hour / 7-Day Heater Time Clock
EWON Internet Connectivity for Remote PLC Access
Three-Color Machine Status Beacon
