Ransohoff 24" Lean Drum Like New 2025 Used Parts Washer
Have one to sell?
ConditionUsed
1 available

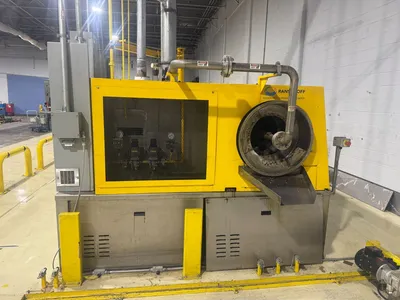

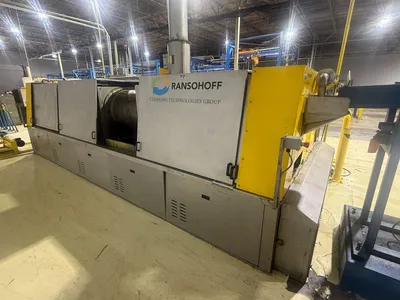

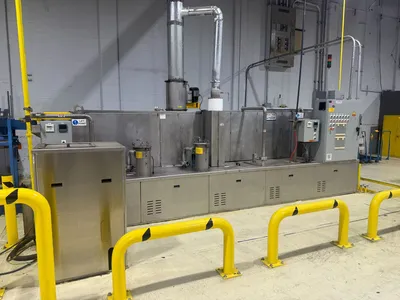

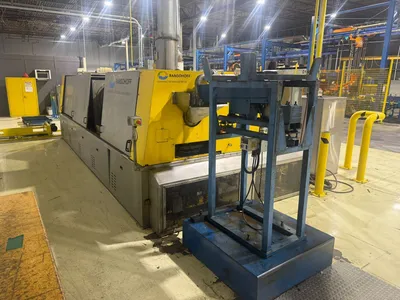

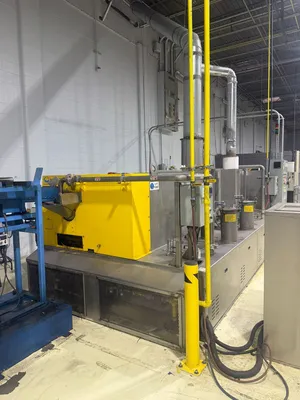

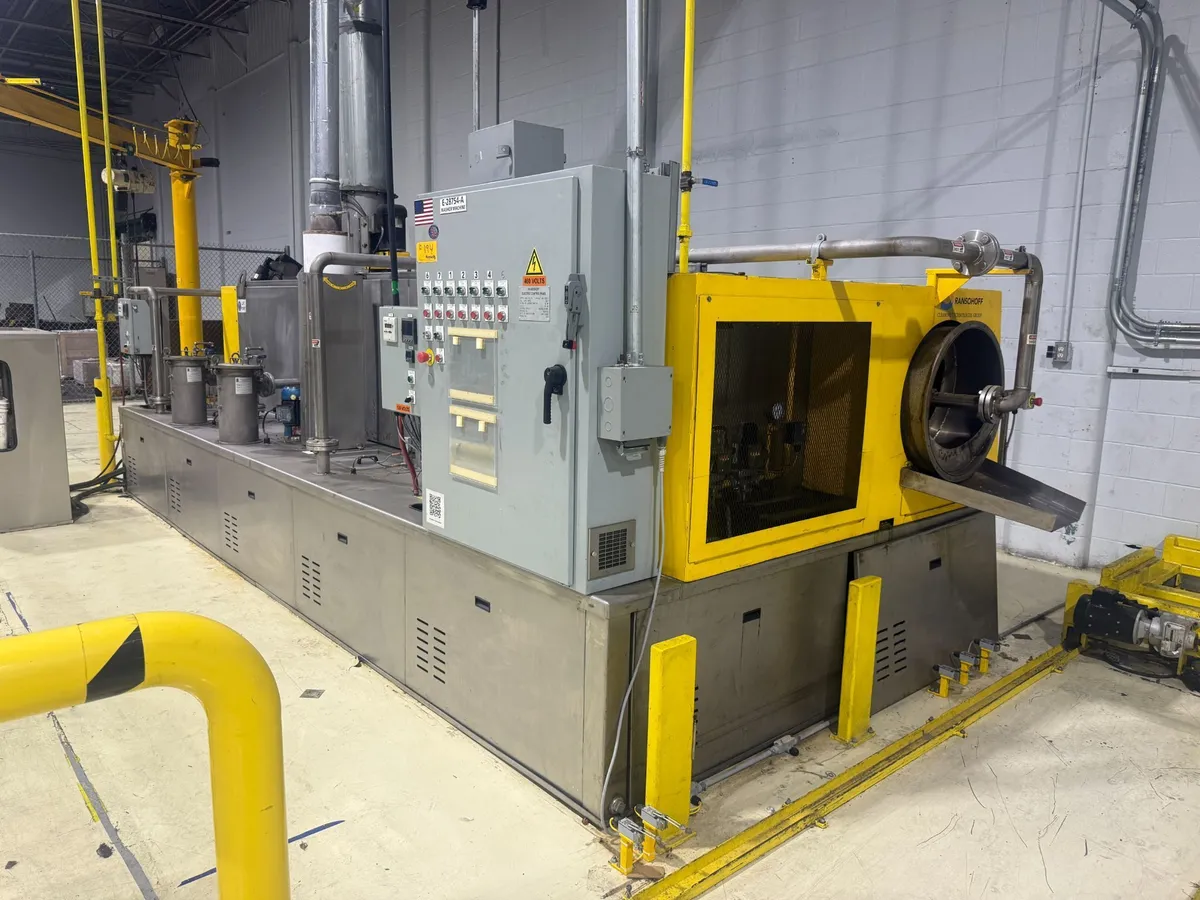

Ransohoff LeanDrum LD-24 Continuous Rotary Drum Parts Washing System designed for the continuous washing, rinsing, and heated drying of high-volume bulk metal components. This heavy-duty industrial cleaning system combines immersion cleaning, high-pressure spray impingement, mechanical tumbling, gravity drainage, and heated blow-off drying into a single continuous process. Ideal for machined components, stampings, forgings, fasteners, castings, powdered metal parts, bearings, and other high-production bulk components requiring continuous processing.
Process Configuration
42" Wash Soak Zone
24" Wash Spray Zone
36" Drain Zone
42" Heated Rinse Spray Zone
61" Heated Blow-Off / Drain Section
23" Discharge Section
The drum design continuously lifts, tumbles, and conveys product through each cleaning stage while exposing all surfaces to immersion and spray cleaning. Alternating solid and perforated drum sections maximize cleaning performance while minimizing chemical carryover between stages.
Wash System
Approx. 340 Gallon Stainless Steel Wash Tank
100 GPM Centrifugal Wash Pump
Approx. 30 PSI Operating Pressure
Stainless Steel Spray Manifolds
Stainless Process Piping
Bag Filtration System
Wedge Wire Chip Basket
Automatic Water Level Control

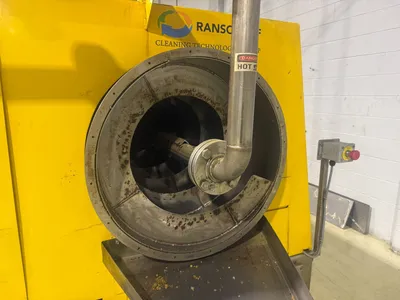

Chip Flush System

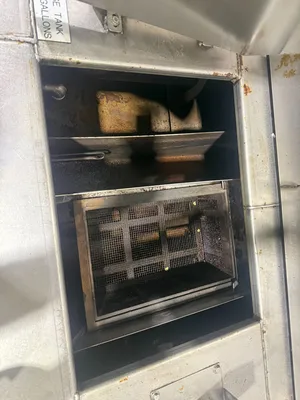

Marine Tank Access Door

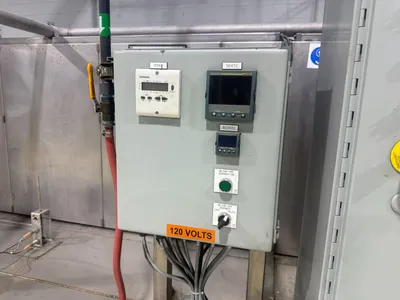

Wash Heat
Natural Gas Fired
Maxon Tube-O-Flame Burner
Approx. 800,000 BTU/hr Input
Operating Temperature Approximately 160°F
Rinse System
Approx. 340 Gallon Stainless Steel Rinse Tank
100 GPM Centrifugal Rinse Pump
Approx. 15 PSI Operating Pressure
Stainless Steel Spray Manifolds
Stainless Steel Process Piping
Automatic Water Level Control
Operating Temperature Approximately 140°F
Heated Blow-Off System
7.5 HP Recirculating Blower
Approx. 3,600 CFM Airflow
Heated Air Plenum
Maxon Gas Burner
Approx. 400,000 BTU/hr
Operating Temperature Approximately 180°F
Fresh Air Intake
Machine Exhaust System

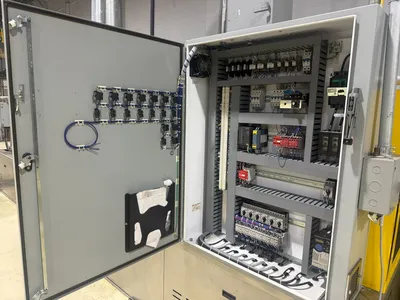

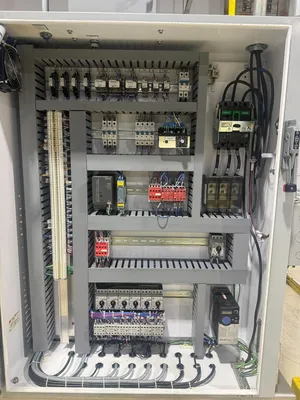

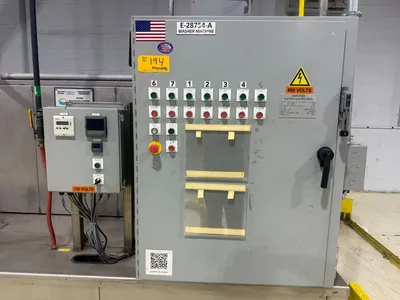

Electrical
460 Volt
3 Phase
60 Hertz
24 VDC Control Voltage
Equipped With

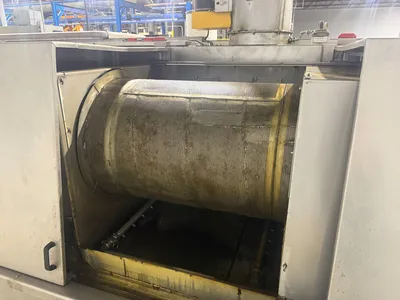

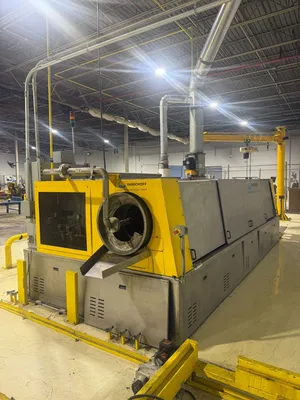

24" Diameter Stainless Steel Rotary Drum
Approx. 18' Overall Drum Length
Heavy-Duty 12-Gauge Stainless Steel Drum Construction
Alternating Solid & Perforated Drum Sections

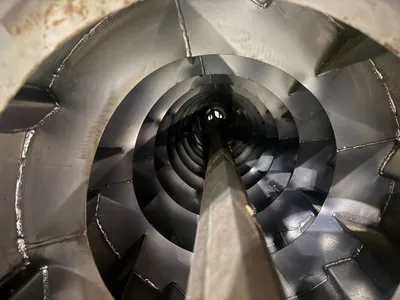

Continuous 4" High × 9" Pitch Internal Helical Flights
Internal Lifting Baffles for Improved Part Agitation
Heavy-Duty Trunnion Roller Drum Support
Variable Speed Drum Drive
External Chain & Sprocket Drive
Stainless Steel Machine Construction
Insulated Process Tanks
Marine-Style Clean-Out Doors
Lift-Off & Sliding Maintenance Access Panels
