JenFab Lean Clean 360-1 With Ultrasonics
Have one to sell?
ConditionUsed
1 available

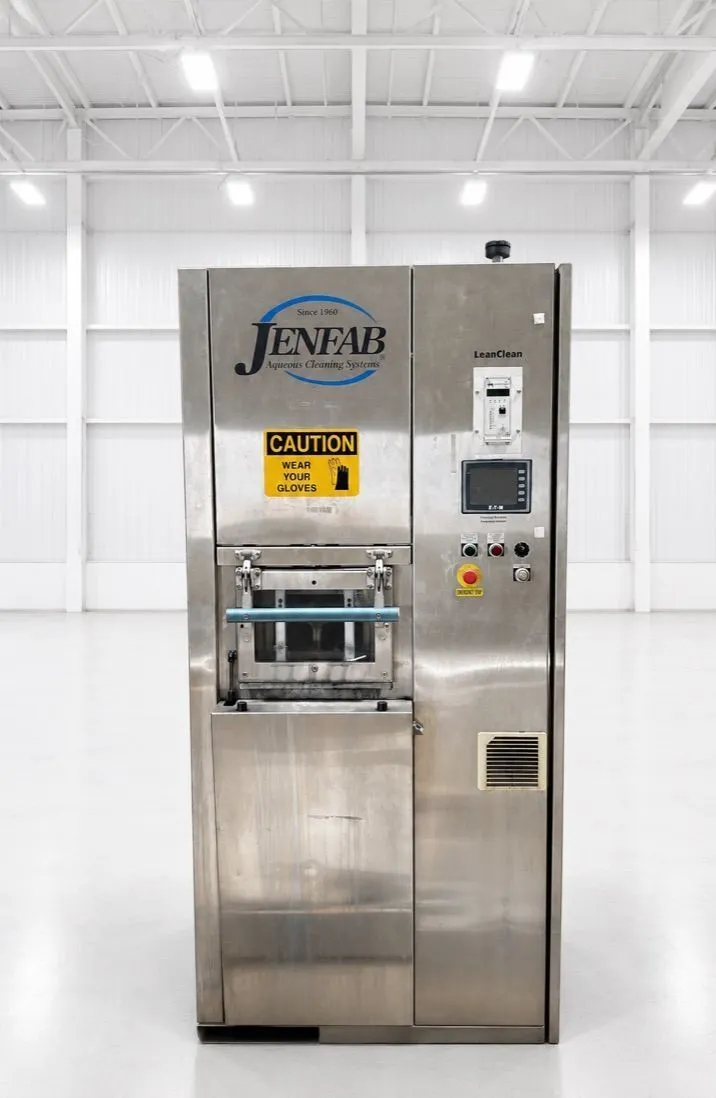

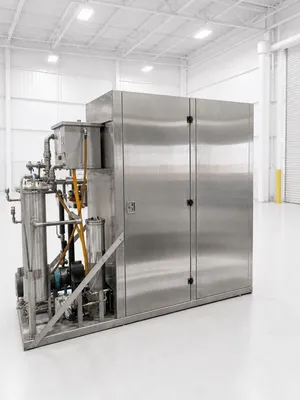

Combine immersion, spray cleaning and high-tech ultrasonics with the LeanClean 360 rotary basket parts washer. This ergonomic front-loading parts washer cleans parts in baskets or fixtures by rotating, spraying and spraying under immersion.
Solutions are delivered, filtered and recirculated continually during the cleaning cycles. As the cleaning basket rotate 360 degrees in the solution, powerful underwater jets purge the parts and flush away soils and chips. The LeanClean 360 leaves even the most complex parts with blind holes and recesses thoroughly clean.
70 Gallon Wash Tank
70 Gallon Rinse Tank
Leanclean 360-1 Features
Floor space: 3′ x 5′ 6″ x 7′ 6″
Load height: 42″
Tank volume: 70 gallons each wash, rinse
Stainless steel pumps: 60 GPM @ 40 PSI

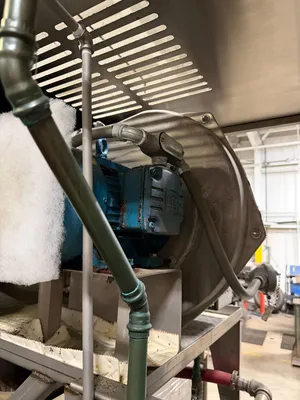

Dryer blower: 1600 CFM recirculating
Dryer heat: 10KW 140° to 220°
Sound level: <75 DBA
Basket size: 12 x 18 x 6
Baskets: 1
Cycles per hour:6 to 10 wash/rinse/dry

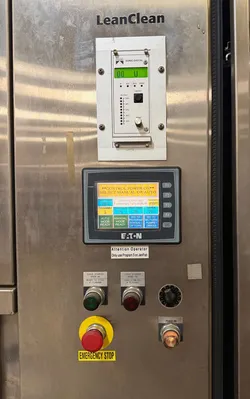

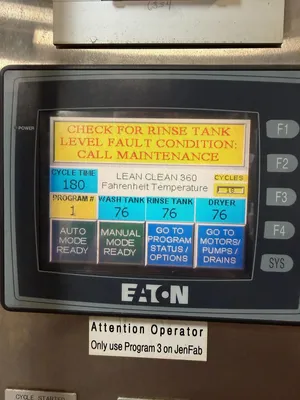

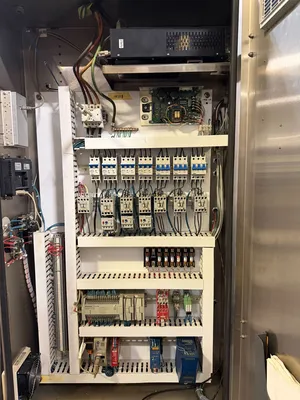

AB Micrologix Programmable Controller wtih Eaton HMI
Stainless Steel Piping for Wash and Rinse Lines
10 HP S.S. Wash Pump 60 GPM at 60 PSI

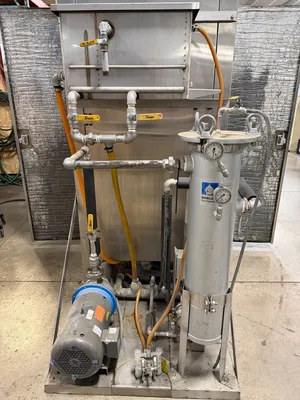

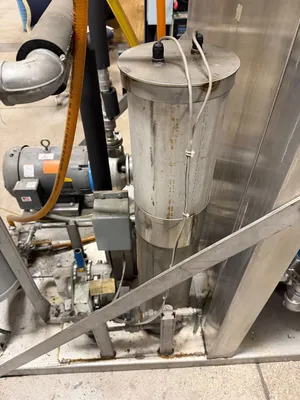

#2 Bag Filter
3 HP S.S. Rinse Pump, Single Element Cartridge
10 KW Dryer

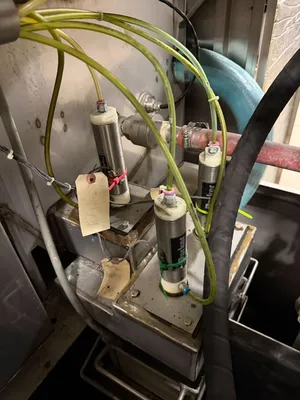

25 HZ Ultrasonics
Oil Coalscer
Eletric Heat 8KW per Each Tank
24 Hour Start Up Timer
Wash Tank Heat up to 180 Deg. F.

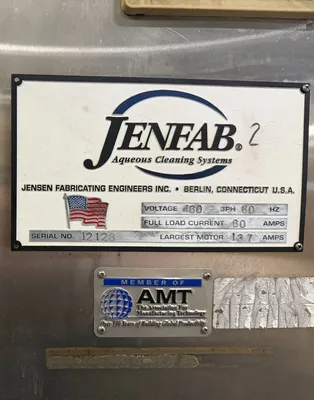

460 Volt 3 Phase 60 HZ
