LeanJet RB-2 With New Ultrasonics, AB PLC, and Fresh Water Rinse To Drain
Have one to sell?
ConditionUsed
1 available
Recent Upgrades / Factory Enhancements (Ransohoff In-House):
This unit was recently serviced and upgraded in-house at Ransohoff, including the addition of a new PLC control system, new ultrasonics, and a fresh water line rinse-to-drain system.
Line Rinse to Drain System:
The machine is equipped with a fresh water line rinse feature designed to improve final part cleanliness following the spray wash cycle and prior to blow-off drying. This system includes:

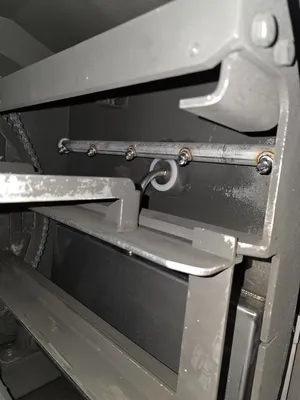

Dedicated spray assembly for fresh water rinse

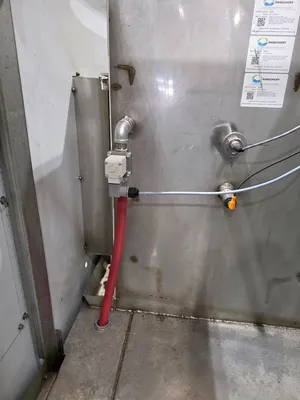

Manual valve and normally closed solenoid valve for automatic on/off control
Pneumatically operated divert drain assembly to direct rinse water to drain
The rinse cycle duration is adjustable via timer, allowing control over water usage and process effectiveness. Spent rinse water is discharged to drain, helping reduce contamination carryover and improving overall cleanliness of processed parts.

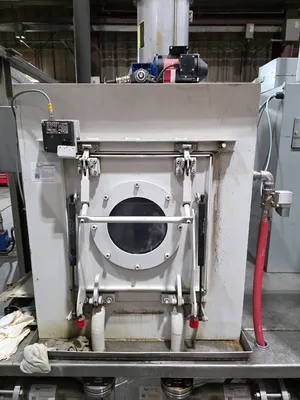

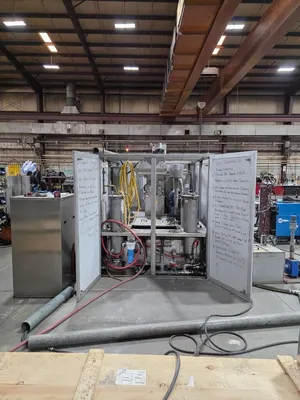

The LeanJet RB-2 immersion cleaning system is a compact, high-performance batch parts washer designed to process two (2) baskets per cycle, with throughput of up to twenty (20) baskets per hour. Engineered for integration into a work cell or smaller production environment, the RB-2 utilizes a patented triple-action cleaning process combining:
Agitation
Spray impingement
Rotation
Hydraulic purging through immersion
Rinse cycle
Heated blow-off drying
This process is highly effective for cleaning complex parts with internal bores and passages.

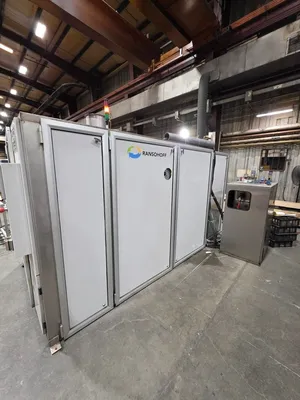

The unit is a fully enclosed, self-ventilating system, minimizing operator exposure to vapors and mist common in open cleaning systems.
RECENT UPGRADES (RANSOHOFF – IN HOUSE)
This unit was recently upgraded at Ransohoff, including:
New PLC control system
Brand new ultrasonics
Fresh water line rinse-to-drain system
Line Rinse to Drain System:
A fresh water rinse is applied after the wash cycle and prior to blow-off drying to improve final cleanliness. System includes:
Dedicated spray assembly
Manual valve and normally closed solenoid valve for automatic operation
Pneumatically operated divert drain assembly
Rinse water is directed to drain to reduce contamination carryover. Cycle duration is adjustable via timer, allowing optimization of water usage and cleanliness performance.
STANDARD CONFIGURATION
Wash / Rinse / Blow-Off process
Designed for (2) Kadon-style baskets
Removable carriage insert for larger parts
Approximate work envelope: 15" x 15" x 24"
INCLUDED FEATURES & OPTIONS
Ultrasonics (New)

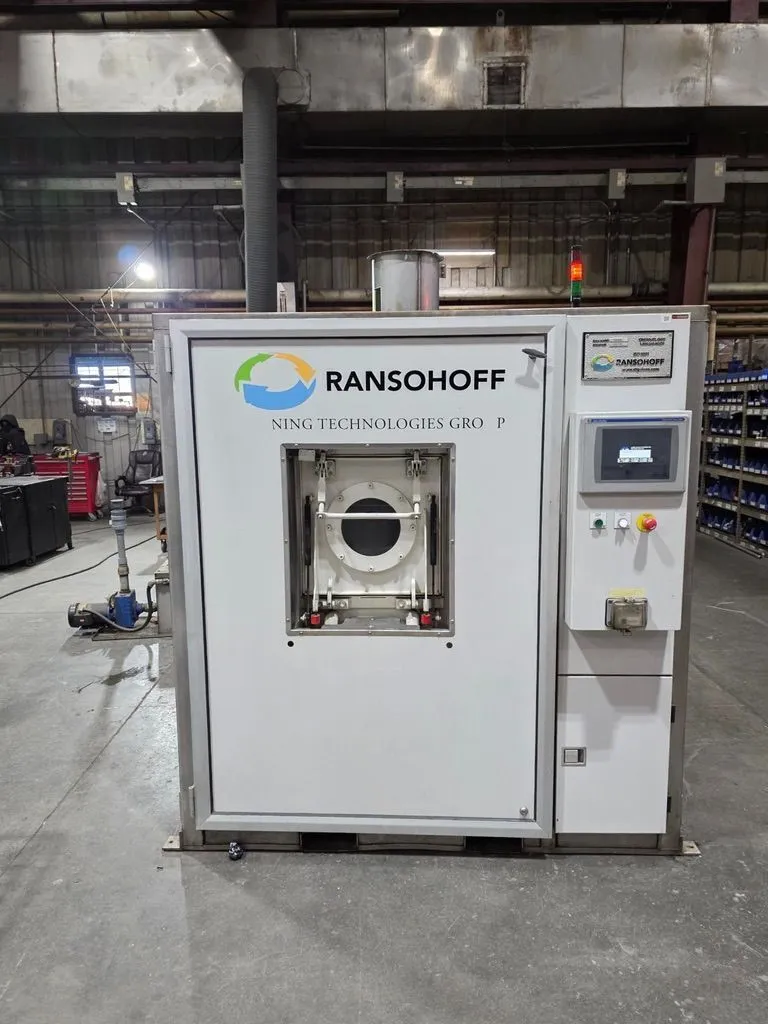

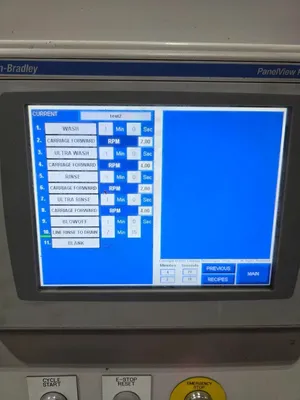

Allen-Bradley HMI & PLC controls

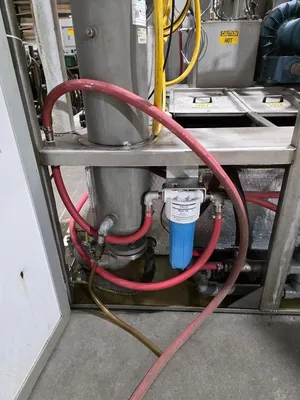

Pro Sep oil removal system
Three-color stack light
Chip basket (wash stage)

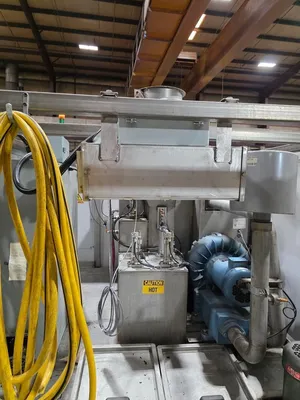

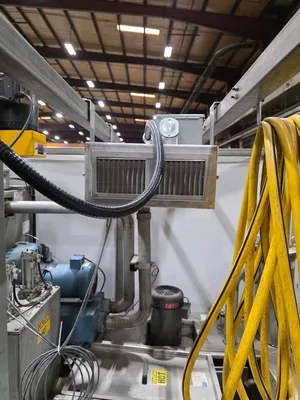

12" stainless tube axial exhaust fan
Manifold drains

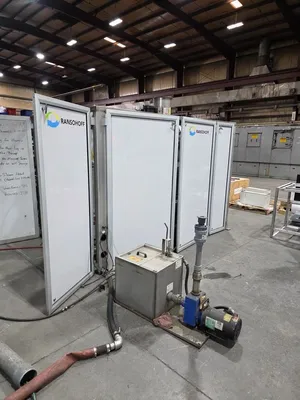

Sump pump tank with pump (machine powered)
Carriage insert for (2) Kadon-style baskets
(2) Kadon-style processing baskets
UTILITY REQUIREMENTS
Electrical: 460V / 3 Phase / 60 Hz
Fresh Water Supply: 3/4" NPT (tank fill)
Compressed Air: 3/8" PT @ 30 GPM / 70 ft
Sump Discharge: 2" NPT @ 30 GPM / 70 ft
Exhaust Connection: 12" pipe flange
Pro Sep Drain: 1-1/2" NPT (capped)
CONDITION
Recently upgraded and serviced at Ransohoff.
System includes new ultrasonics and updated controls.
Offered in good operational condition.
