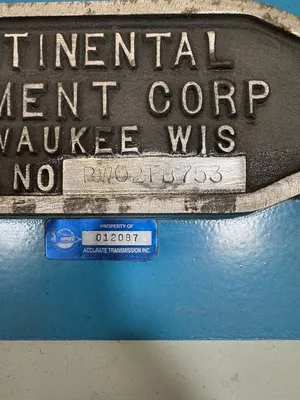

Equipment: Heavy-Duty 3-Stage Stainless Steel Conveyor Washer
Type: Flat Wire Belt Conveyor Parts Washer
Condition: Used
Documentation Included: Drawings included
Quoted Equipment Description

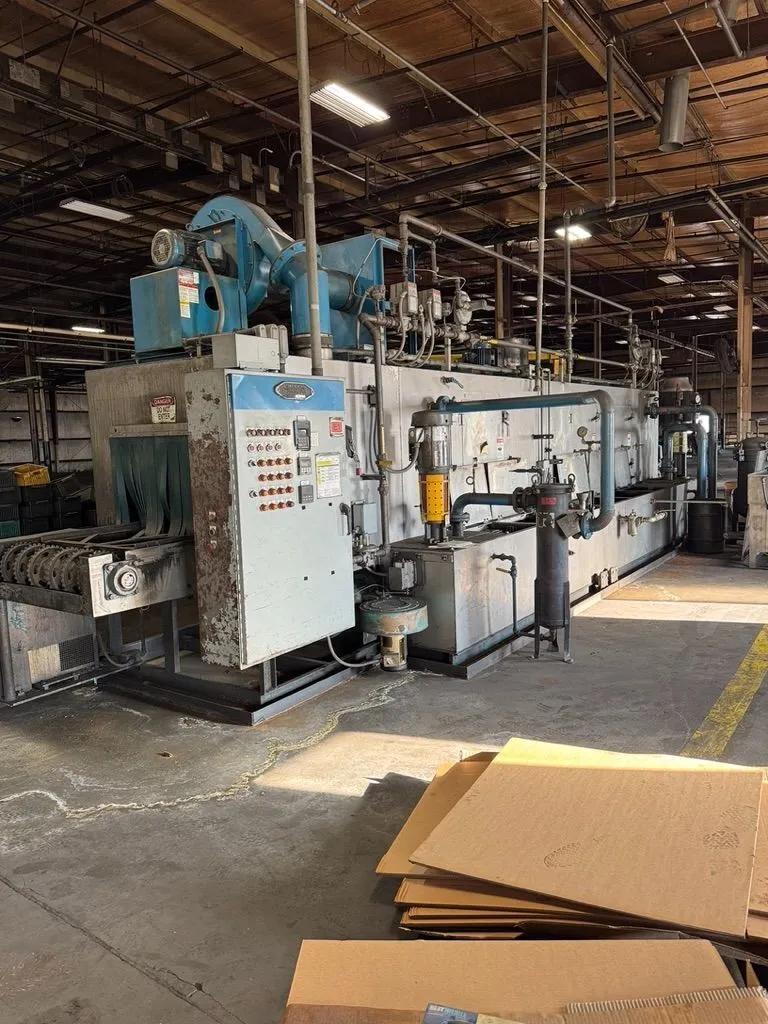

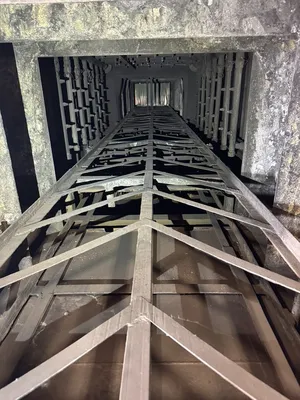

One (1) heavy-duty 3-stage stainless steel conveyor belt washer equipped with a 1" x 1" flat wire conveyor belt, designed for continuous in-line washing of manufactured parts. System includes natural gas heated wash stage, natural gas heated rinse stage, and ambient air blow-off. Per the scan, the machine is configured with a conveyor travel direction from load end to unload end and includes wash, rinse, drain, and blow-off sections in sequence.

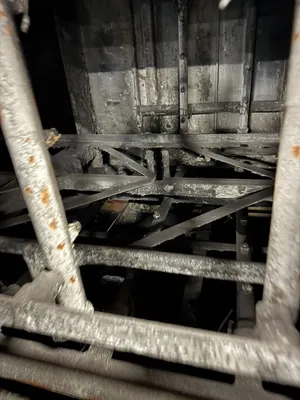

Approximate Machine Sequence / Layout

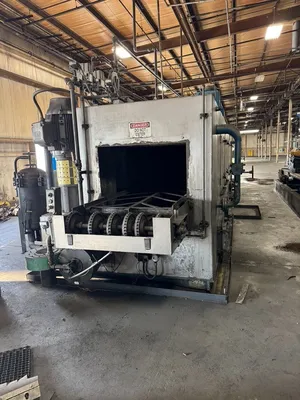

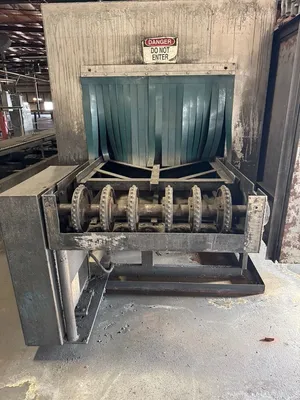

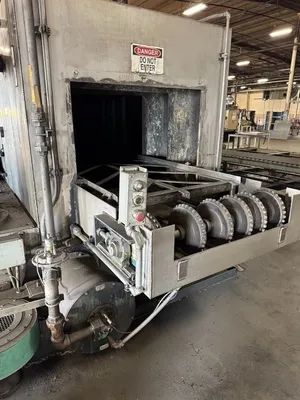

3' load end
4' entrance vestibule

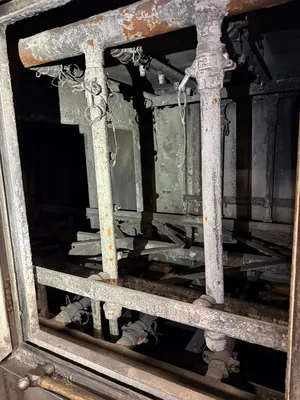

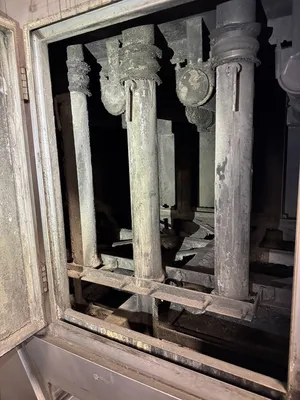

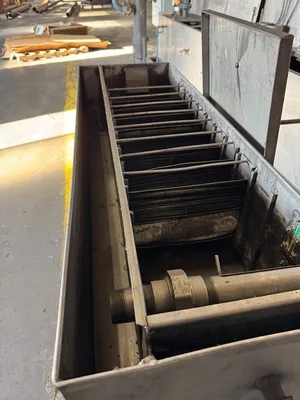

8' wash section
5' drain section
3' rinse section
5' drain section
4' blow-off section
3' unload end

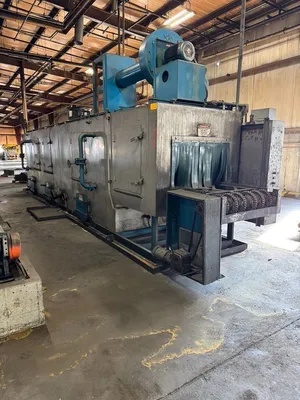

Overall machine length: approximately 34'
Approximate overall width: approximately 5'2"
These dimensions are consistent with the drawing and should be verified prior to shipment or installation.
Pumping / Process System
Wash Pump: 60 HP, approximately 475 GPM
Rinse Pump: 10 HP, approximately 200 GPM

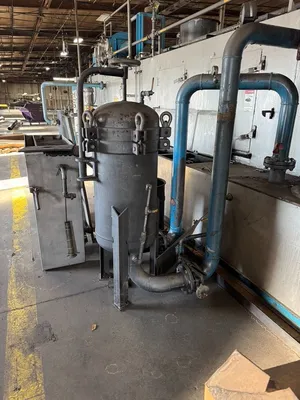

Filtration:

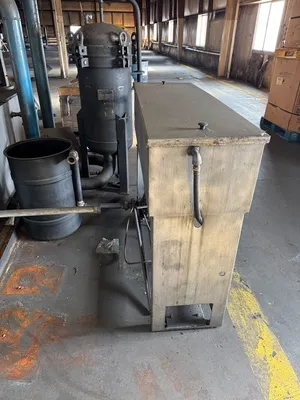

Wash stage equipped with 400-micron, 3-bag filter system
Rinse stage equipped with 400-micron, 1-bag filter system
Oil Removal: Phase model oil separator/skimmer included

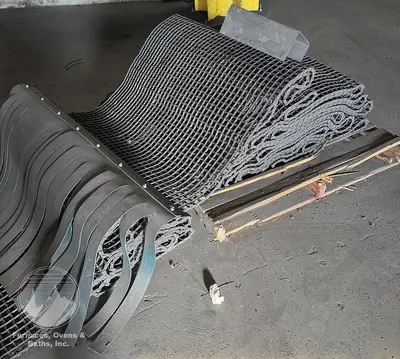

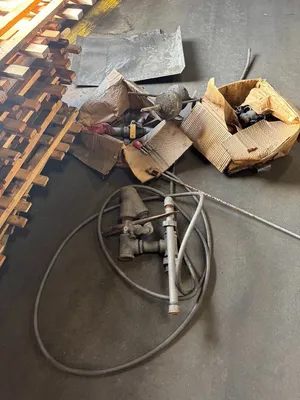

Additional note: Washer belt has been removed for cleaning and will be shipped loose on a skid for buyer installation.

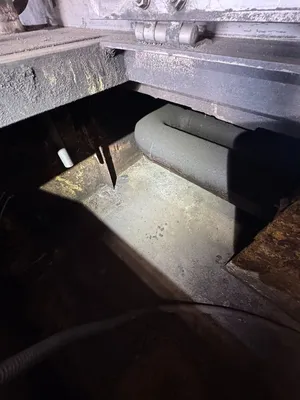

Heating System

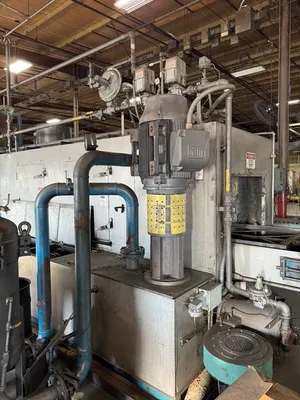

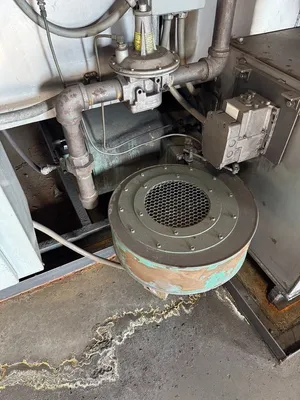

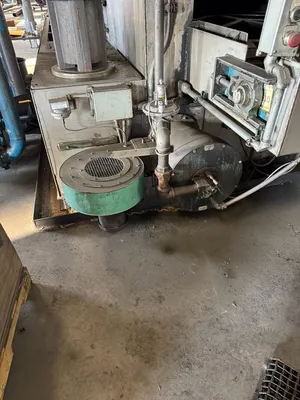

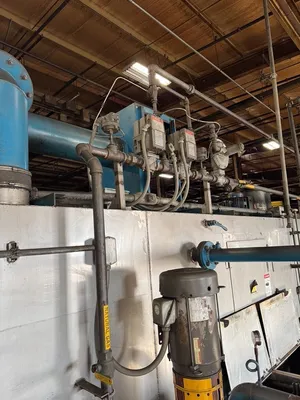

Wash and rinse tanks are heated by two (2) Eclipse 6" Immerso-Jet package burner systems with:
Spark ignition
Honeywell flame safety controls
UV scanners
From the design table shown on the drawing, the gas input appears to be approximately:
Wash stage: 2,000,000 BTU/hr
Rinse stage: 1,500,000 BTU/hr
These burner input values should be treated as drawing-based and subject to final confirmation from the nameplate or OEM documentation.

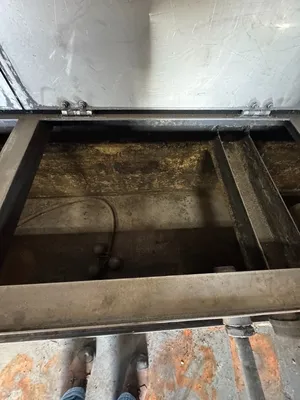

Tank / Process Data
From the data table visible on the drawing, the system appears to show approximately:
Wash tank capacity: 650 gallons
Rinse tank capacity: 580 gallons
Wash operating temperature: up to approximately 190°F
Rinse operating temperature: up to approximately 160°F
Conveyor speed basis in drawing: variable, approximately 1–8 FPM, with design table based on 4 FPM.
Controls

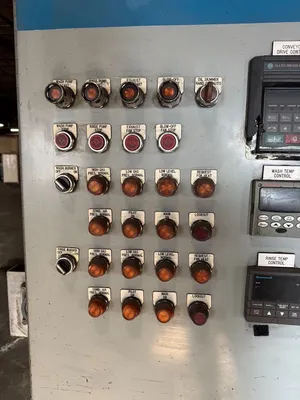

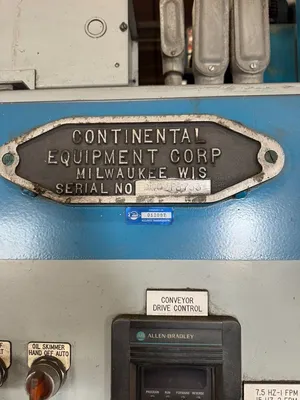

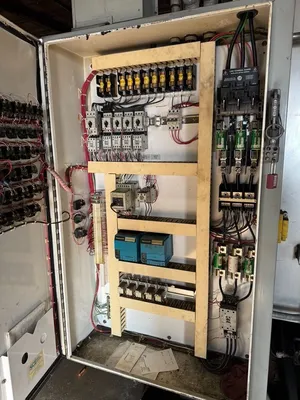

Mounted and wired in a NEMA-style control enclosure with fused disconnect, including:
Two (2) Honeywell UDC digital temperature controllers for wash and rinse
Allen-Bradley VFD for conveyor drive
Conveyor speed range approximately 1 to 8 FPM
Honeywell flame relays
Motor starters
Allen-Bradley pushbuttons and signal lights mounted on enclosure face
Electrical information shown on the drawing appears to indicate:
460V / 3PH / 60Hz
Approx. 135 FLA
Approx. 200A recommended disconnect
These should be verified against the electrical nameplate before installation.
Included With Machine
Conveyor washer
Flat wire belt conveyor
Burner systems
Filtration systems
Oil separator/skimmer

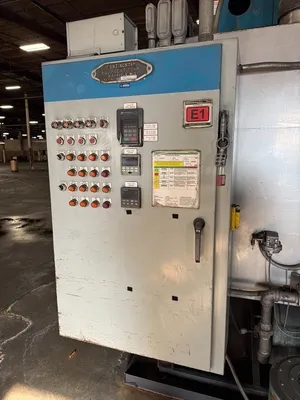

Control panel
Available drawings/documentation
