Pass-Thru Washer

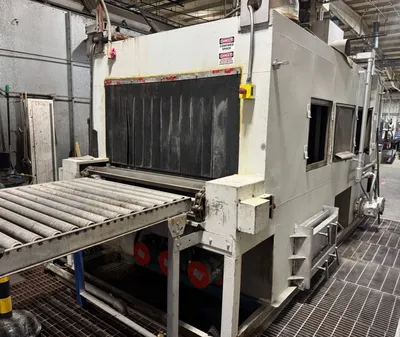

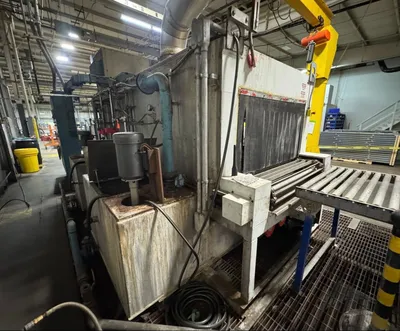

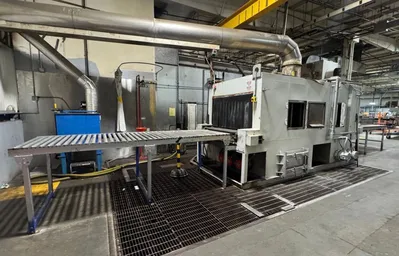

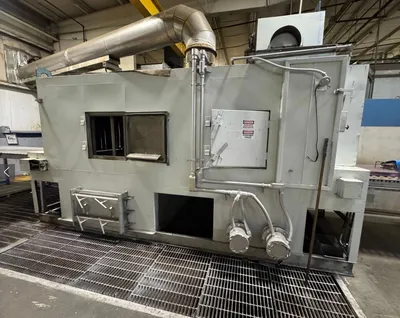

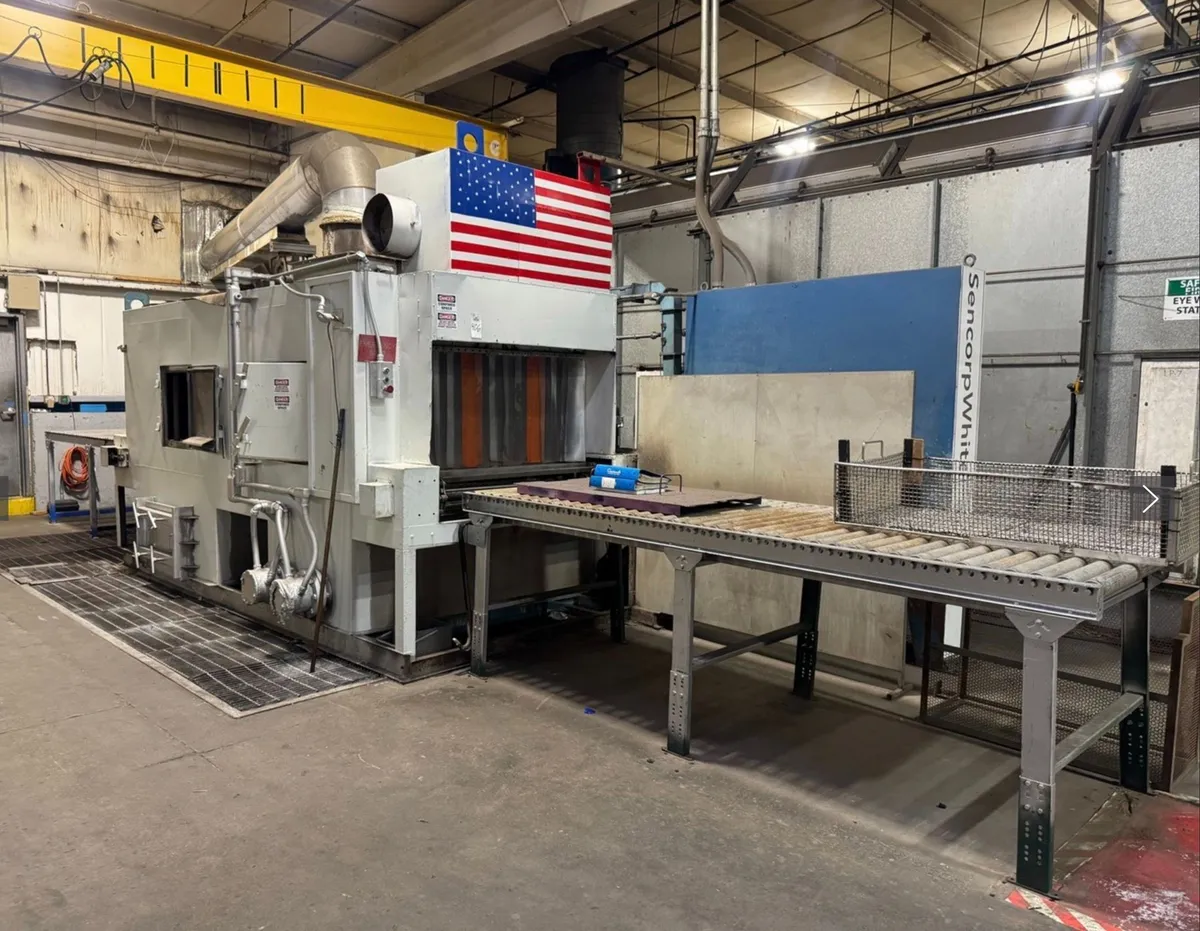

Cincinnati Industrial Machinery Stainless Steel HEAVY DUTY Pass Thru 48" W x 30"
Sold

Cincinnati Industrial Machinery Stainless Steel HEAVY DUTY Pass Thru 48" W x 30"

Pass-Thru Washer
Manufacturer:
CINCINNATI INDUSTRIAL MACHINERY
Model:
3 Stage HEAVY DUTY

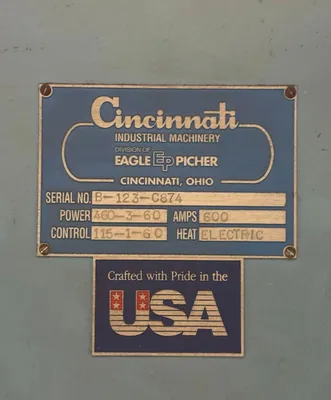

Serial #:
B-123-C874

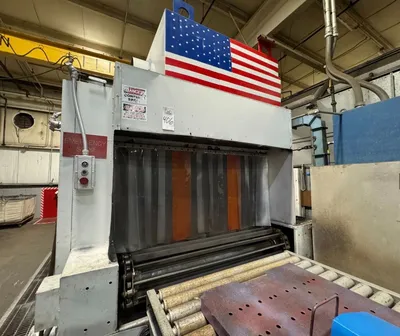

Cincinnati Industrial Machinery – Heavy-Duty Conveyor Washer Cincinnati Industrial Machinery is known for building some of the most rugged, over-engineered washers in the industry — and this system is no exception. Constructed for long service life in demanding production environments, the machine features: 3/16" thick 304L stainless steel tanks 1/8" thick 304L stainless steel housings 1/8" thick 304L stainless steel drain decks Heavy-duty conveyor rated for 20,000 lbs/hour throughput Variable conveyor speed: 1.4 – 3.8 FPM Designed for continuous industrial duty, this washer delivers exceptional durability, corrosion resistance, and reliable performance for high-volume cleaning applications.
Dimensions14'-2" L x 8'-6" W x 9'-3" T14'-2" L x 8'-6" W x 9'-3" T
Weight12000 lbs. Approx.12000 lbs. Approx.

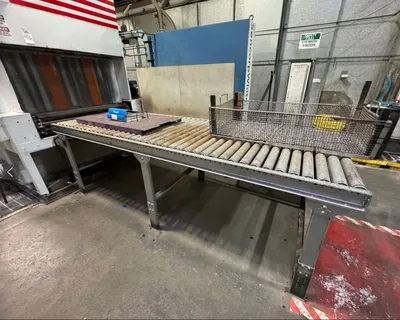

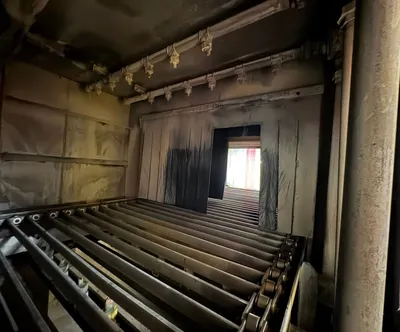

48" Wide Belt 54" Opening 3/8"x1 1/2" Cross Bars 3" Pitch Roller Chain
20,000 lbs. Per Hour
30" Part Height

3'-6" Load Height
1'-1" Load
1'-6" Approach
4' Wash
2'-6" Drain
2' Rinse
2' Drain and Blow Off
1'-1" Unload

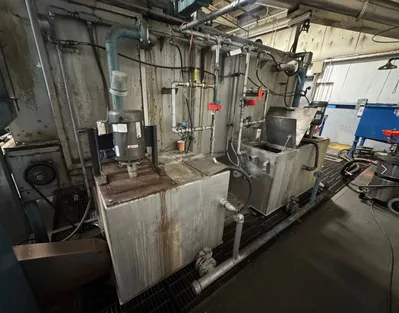

5' Wash Tank 140 Deg. F. 200GPM @ 20 PSI 120 Seconds
3'-3" Rinse Tank 140 Deg. F. 120 GPM@20 PSI 60 Seconds
Blow Off 220 Deg. F.

Stainless Construction
Wash Pump and Rinse Pumps Carbon
Carbon Plumbing
Electric Heat 371KW
480 Volt 3 Phase 600 FLA

This equipment has been sold. Similar equipment available now is shown below.
