Proceco Typhoon HD100 (100" Diam. Table x 48" Part Height) 100HP PUMP!!!!!
Have one to sell?
ConditionUsed
1 available
Now available: a Proceco 100-inch diameter industrial parts washer — one of the largest and hardest-to-find rotary turntable washers ever built. Units of this size almost never come up for sale, and this is currently the only 100" washer available on the used market.
This machine is engineered to blast parts clean with a massive 100 HP wash pump — an extremely rare configuration. In over 20 years in the parts washer business, I’ve seen fewer than five washers built with this level of horsepower.
Designed for the toughest industrial applications:
Gearboxes
Engine blocks and heads
Rail components
Electric motors
Heavy castings and assemblies
If it’s dirty, this machine was built to clean it.
This is a beast of a parts washer for manufacturers that need real cleaning power — not a light-duty parts washer.

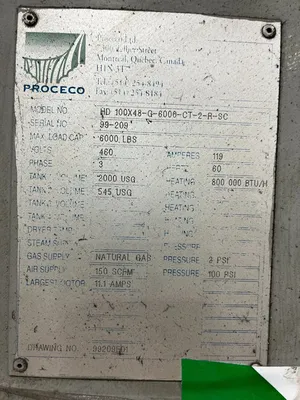

Machine Information
Manufacturer: Proceco
Model: Typhoon HD-100
Year: 1999
Serial Number: 99-209
Capacity & Envelope
Work Height: 48 inches
Turntable Diameter: 100 inches
Load Capacity: 6,000 lbs
Approximate Weight: 25,000 lbs
Tank Volumes
Tank 1: 2,000 gallons
Tank 2: 545 gallons
Wash System — Stage 1
Nozzles: 31 Flat-V spray nozzles
Flow Rate: 7.0 GPM per nozzle
Pump: 100 HP
Rinse System — Stage 2
Nozzles: 17 Flat-V spray nozzles
Flow Rate: 6.0 GPM per nozzle
Pump: 10 HP
Fresh Water Rinse System
Nozzles: 14 Hollow cone nozzles
Flow Rate: 0.4 GPM per nozzle
Heating System
Heating Capacity: 800,000 BTU/hr
Fuel Source: Natural Gas
Electrical
Power: 460V / 119A
Overall Dimensions (OEM)
Footprint: 13' 6" x 26' 6"
Height: 11'
Highlights
Massive 100" turntable — extremely rare
Heavy-duty 6,000 lb load rating
100 HP wash pump for aggressive cleaning
High-capacity gas heating system
Built for continuous industrial production
Proven Proceco reliability
Condition
Just removed from service and available for immediate sale.
This is a true heavy-duty production washer — machines of this size and capability rarely become available.
Equipped With
Siemens SIMATIC OP3 PLC operator interface
Electronic OMRON timers
Swing-out turntable
Plant air blow-off
Disk oil skimmer
Automatic sludge removal conveyor
Exhaust blower
