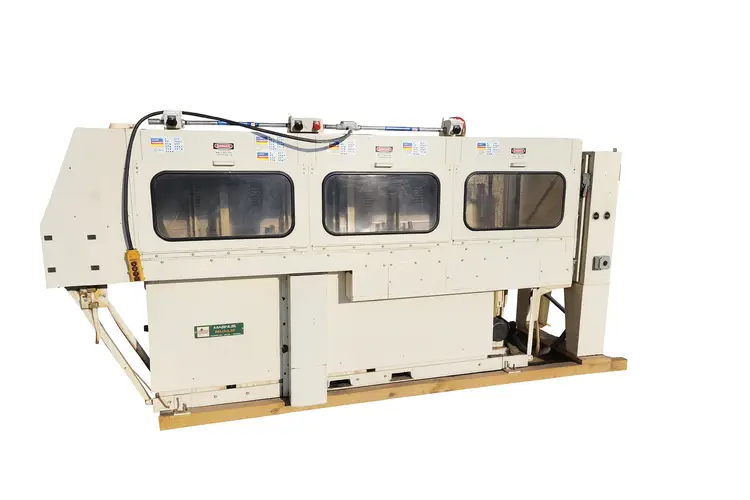

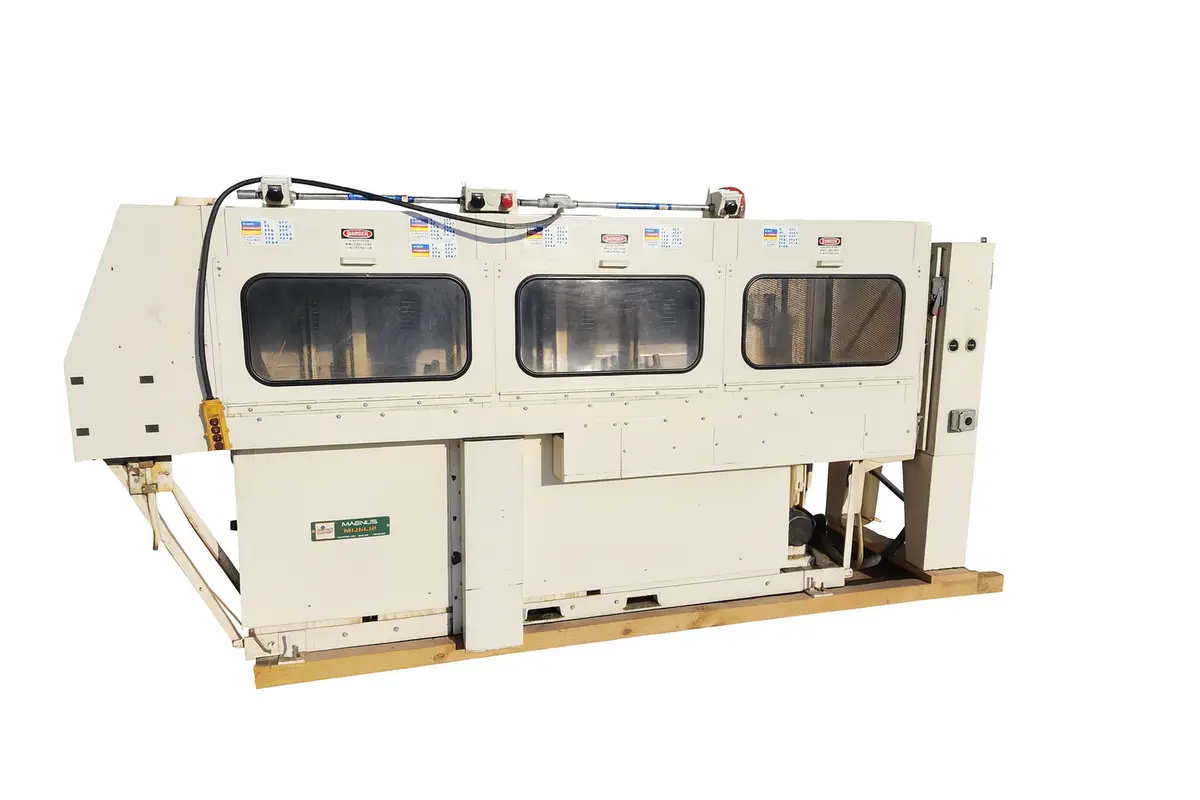

Automatic 5-Stage Immersion/Agitation Parts Washer
With Five 16x22 Tanks for Washing, Rinsing, and Preventative Coating Application
S/N 053100 (2002)
Description of Operation
1. Automatic Mode (“AUTO”)
Baskets will pass through the entire system automatically without operator assistance. All guards must be in place at all times.
2. Semi-Automatic Mode (“CAUTION”)
Baskets will pass through the system as directed by the operator using the push-button station. All guards must be in place at all times.
3. Manual Mode (“OPERATOR”)
Baskets will pass through the system by being physically moved by the operator. All guards must be in place at all times.
Specifications
Construction: Stainless
Work height: 36.38”
Work flow: Right to Left
Platform Typical Agitation Auto Cycle:
Stage 1 & 2 (Agitation): Wash
Stage 3 & 4 (Agitation): Rinse
Stage 5 (Agitation): Protective coating

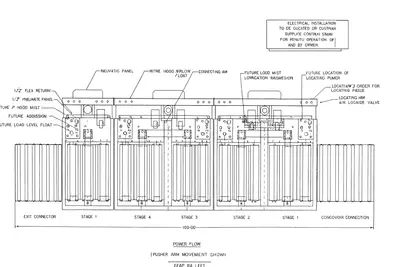

Tank Dimensions (Inside, L × W × D):
24” × 17” × 24”
Tank Capacity:
50 gallons
Agitation Cycles (Short Stroke Mode):
60 cycles per minute
Basket Load Capacity:
50 lbs
Maximum Basket Width:
13”
Stroke for Pusher Beam (for 13” width basket):
22.20”
Air Pressure Required:
60 PSI
Voltage:
480 / 3 phase / 60 Hz
Weight (Estimated):
5,000 lbs
Overall Machine Dimensions with Conveyors (L × W × H):
138.3” × 55” × 80”
