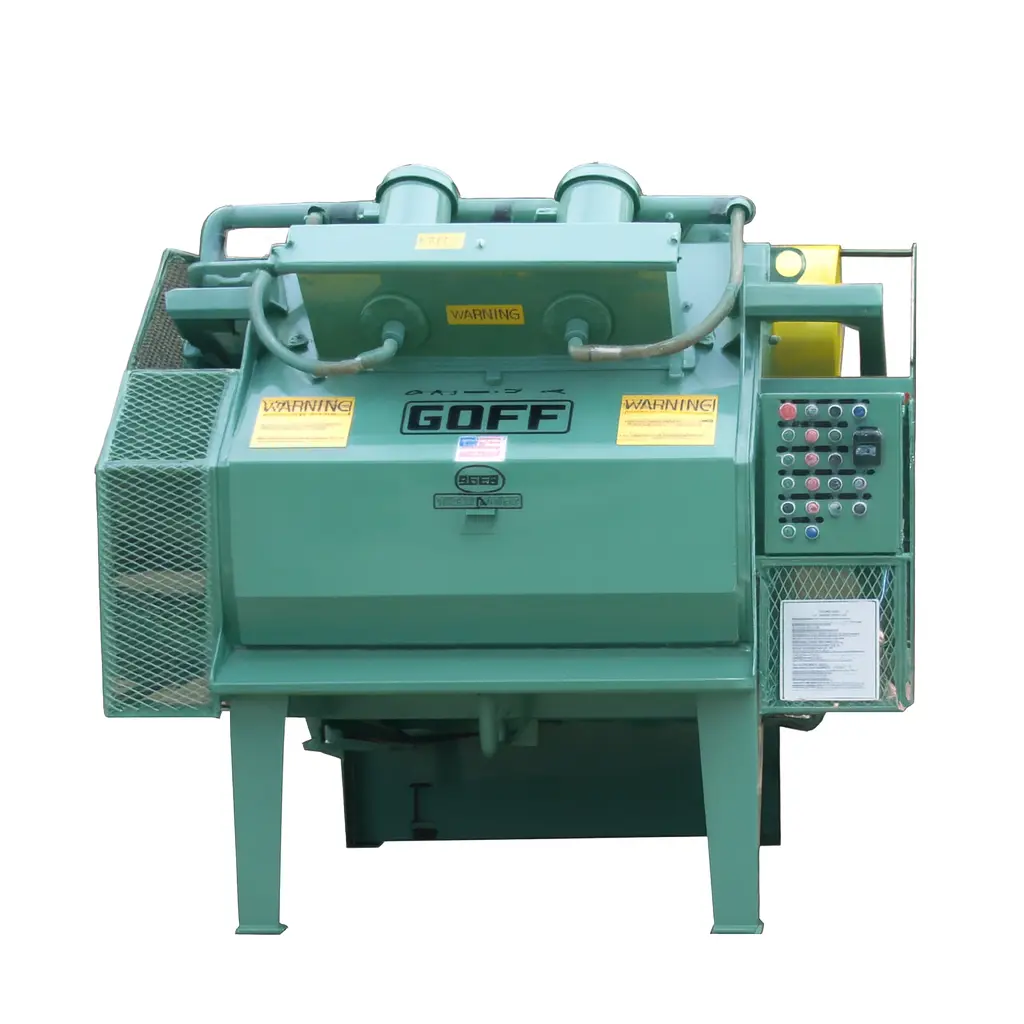

GOFF HydroPulse® HP6 Batch Tumbler Water Blast Degreasing & Washing System
Have one to sell?
ConditionNew
1 available
New
Built for the U.S. Military — Never Installed — New, Unused Condition
The GOFF HydroPulse® HP6 Batch Tumbler is a high-performance water blast degreasing and washing system engineered for demanding industrial applications. This specific unit was manufactured for a U.S. Military contract, built to rigorous government specifications, and never installed or placed into service. It remains in new, unused condition, offering a rare opportunity to acquire a military-grade cleaning system at exceptional value.
Designed to deliver effective degreasing, washing, and contaminant removal without the maintenance burden of high-pressure pumps or spray-nozzle systems, the HP6 provides consistent, long-term performance with simplified operation.
Key Features
Power Door
Two 5 HP Direct-Drive Water Wheels
Unique Flight & Link Tumble System
Converted to Electric Heat
Self-Cleaning Tank
No High-Pressure Pumps
No Spray Nozzles
Remote Water Supply
1,000 lb Capacity
Equipment Dimensions
Width: 7 ft
Length: 6 ft 2 in
Height: 6 ft 10 in
Weight: 4,300 lb
Water Blast Unit
Wheels:
Two standard 5 HP water wheel units rotating at 1750 RPM for maximum water velocity.
14" diameter stainless steel wheels with six openings (2" x 1").
Wheel Housing:
Constructed from ¼" steel plate.
Control Nozzle:
Adjustable for pattern control and precision cleaning.
Work Handling System
GOFF’s flight-and-link handling system provides gentle yet effective tumbling action with exceptional durability.
Cast-iron link with 9/16" stainless steel pin and cotter pin
Flights formed from 10-gauge steel
Flights bolted with two stainless-steel 3/8" bolts per end
Optional soft flights made of compressed rubber over steel for delicate or small parts
Capacity: 6 cu ft / 1,000 lb
Mill Speed: 6 ft per minute
Mill Drive:
Direct-coupled motor to rear-mounted gear box, chain and sprocket conveyor drive, and a shaft-mounted torque-limiting clutch for jam protection.
Cabinet Construction
The cabinet is an all-welded assembly of 3/8" and 1/4" steel plate.
A large rear access door allows convenient replacement of conveyor components and maintenance access.
Power Door
Push-button controls activate two 4" pneumatic cylinders to lift and retract the door for full mill access.
Kick plates inside the door prevent parts from wedging between door and mill.
Return Pump & Screen
Water and debris funnel into a removable 1/8" trap basket.
Fine material returns to the tank via a flange-mounted seal-less sump pump.
High-level limit switch shuts down the main feed pump in the event of pump failure.
Remote Tank Construction
Tank:
¼" steel plate, foam insulated, 350-gallon capacity, with 14-gauge outer cover.
Pumps:
Vertical centrifugal seal-less sump pumps, cast iron, direct-coupled to T.E.F.C. motors.
Drag Conveyor System:
½" steel with chain link and synthetic blades, removing solids at ~2.5 ft/min, powered by 1/3 HP motor.
Separator System (Optional):
Closed-loop solids-removal system with waste hopper for downstream disposal.
Oil Skimmer:
¼" steel construction with 14" wheel driven at 2 RPM. Synthetic wiper deposits oils/sludge into collection container.
Electric Motors
All motors are TEFC ball bearing, 230/460V, 3-phase.
Why This Machine Is Exceptional
Built for U.S. Military specifications
Never installed — genuinely new/unused
GOFF’s proven HydroPulse® performance
High-capacity system suitable for heavy industrial use
Rugged steel construction throughout
Minimal maintenance design (no spray nozzles, no high-pressure pumps)
Reliable and efficient water blast cleaning action
This unit represents an opportunity to acquire a military-grade, unused HP6 system—the best of GOFF’s engineering at a fraction of new-build cost.
