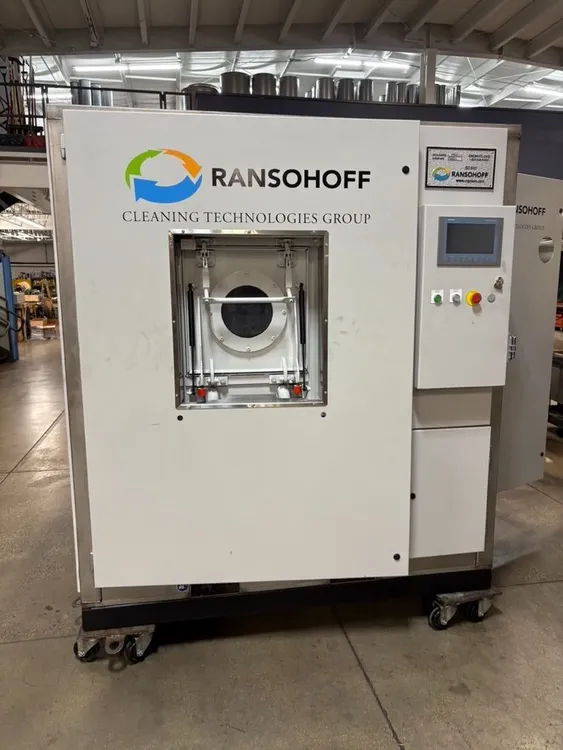

Ransohoff RB-2 with Ultrasonics

Technical Specifications
Washing Equipment

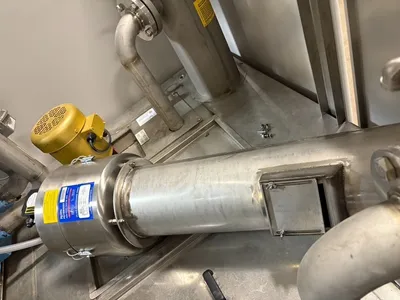

Wash Pump: 390 LPM (100 GPM) @ 2.8 bar (40 PSI) — Gusher Stainless Steel

Rinse Pump: 390 LPM (100 GPM) @ 2.8 bar (40 PSI) — Gusher Stainless Steel

Wash Heat: Electric 20 kW immersion heater, up to 60°C (140°F)

Rinse Heat: Electric 20 kW immersion heater, up to 60°C (140°F)

Temperature Control: HMI-controlled via thermocouple; low/high warning alarms displayed on HMI

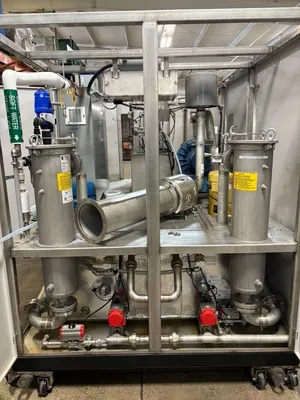

Filtration: Single stainless-steel double-length filter housing with 50-micron disposable bag; dirty filter warnings displayed on HMI

Liquid Level Control: Automatic level sensor and brass solenoid fill valve (optional stainless steel fill valve available)

Monitoring Devices: Tank levels, temperatures, and spray pressures displayed on HMI

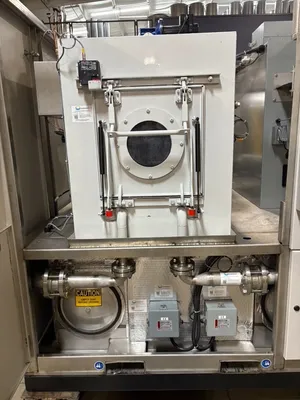

Tank Access: 14" marine door with lift-off tank lids

Spray Nozzles: Stainless Steel Vee-Jet and Poly sump tribulation nozzles

Pump Protection: Single pump screen installed

Connections:

1½" NPT drain and overflow per tank

¾" NPT fresh water inlet

Pro-SEP plumbing hookup in wash tank

Tank Capacity: 720 L (190 US gallons) per tank with sloped bottom

Drying Equipment

Blower Type: Regenerative fan

Blower Capacity: 275 CFM @ 0.1 bar

Air Filtration: Included

Air Flow Sensor: Analog air flow sensor with dirty filter warning and alarms displayed on HMI

Heat: Electric 20 kW duct heater up to 105°C (220°F)

Temperature Control: HMI-controlled via thermocouple; low/high warnings and alarms displayed on HMI

Electrical Controls Equipment

Power: 460 V, 3 PH, 60 Hz

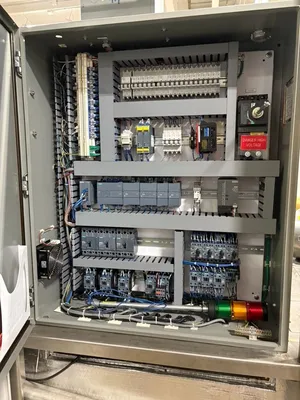

Control Panel: NEMA 12 enclosure

Control Voltage: 24 VDC

PLC: Siemens Simatic S7-1200

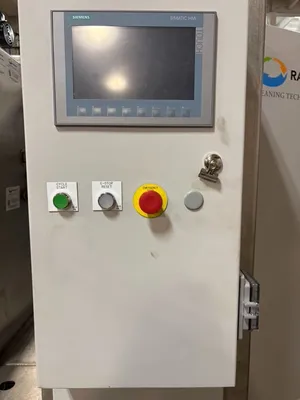

Operator Interface: Siemens KTP-900 9" widescreen TFT touchscreen HMI

General Equipment Design

Sound Specification: 80 dBA TWA (without optional exhauster)

Exhaust: Roof plenum with 8" slip-fit collar

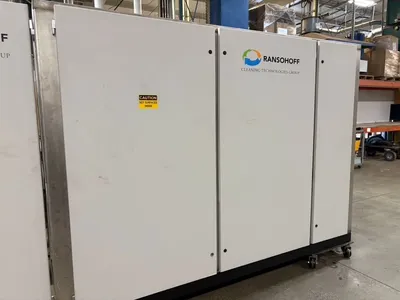

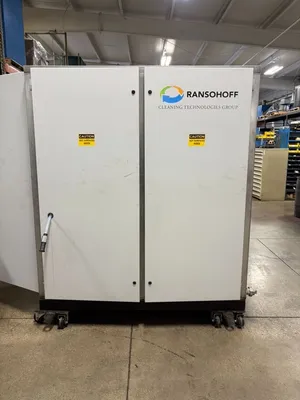

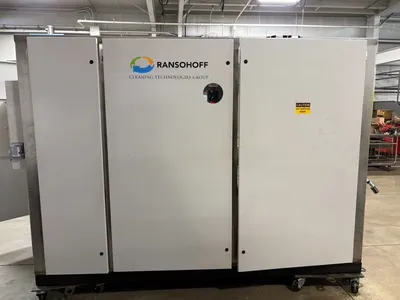

Enclosure Doors: Access doors provide full access to all maintenance points. Constructed with anodized aluminum extrusion frames and secured using ¼-turn compression latches.

Manuals: Complete documentation available from Ransohoff

Language: English

Lubrication Manual: Included

Miscellaneous: Equipped with integrated forklift pockets for safe and easy maneuvering
