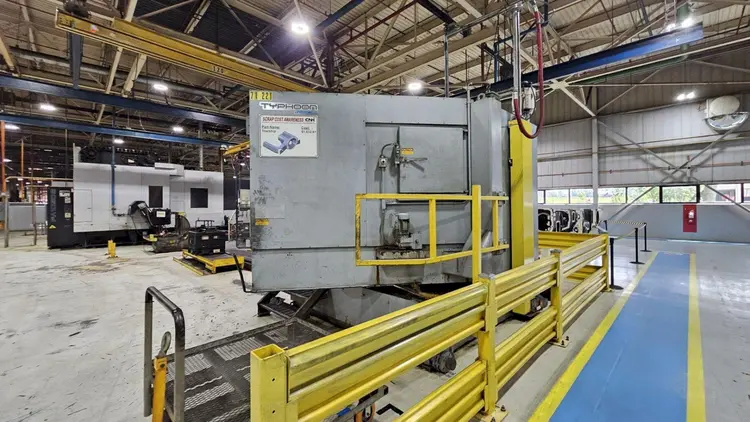

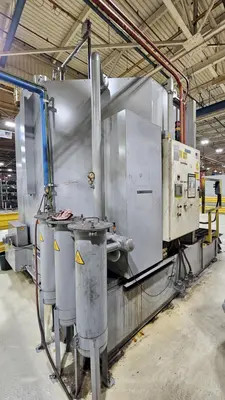

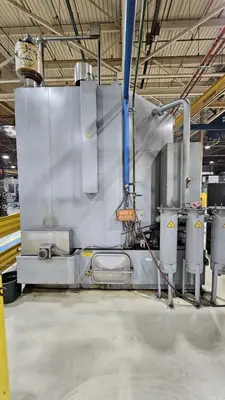

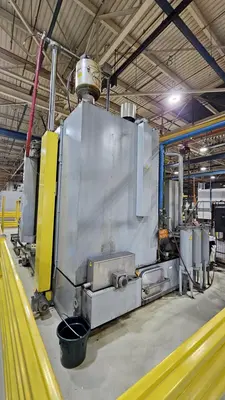

Heavy Duty Proceco Parts Washer 75x60 3 Stage W, R, BO

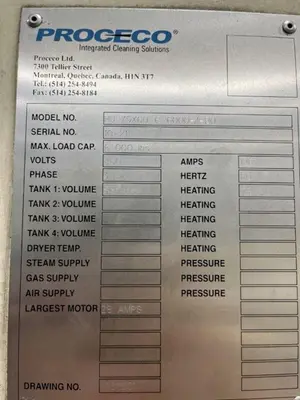

Serial ....................... 10-211
Year New ..................... 2011

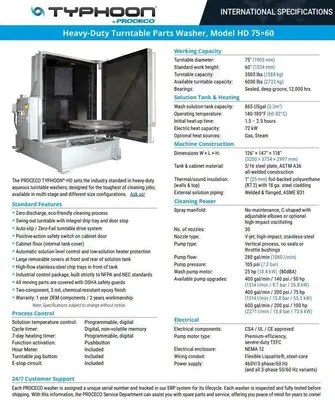

Series ....................... Typhoon Heavy Duty
Model ........................ HD 75x60-E-6000-a-BO

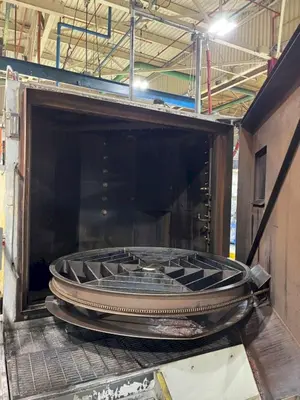

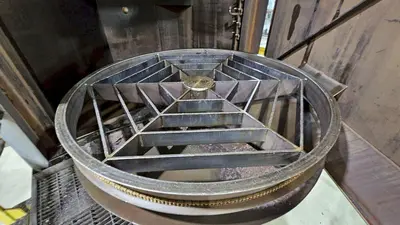

Turntable Diameter ........... 75”
Turntable Weight Capacity .... 6,000 lbs

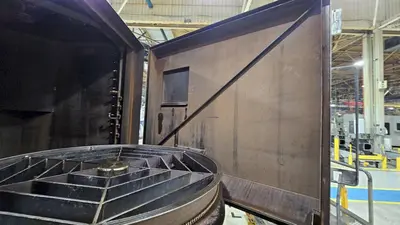

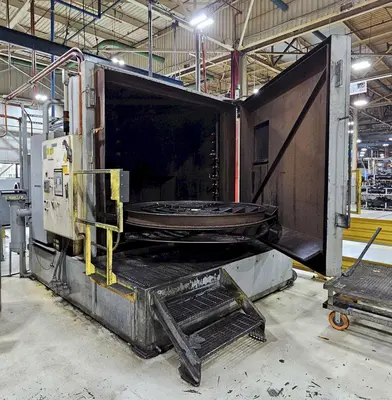

Swing Out Door & Table ....... Yes
Working Height ............... 60”
Wash Solution Tank Size ...... 865 Gallons
Tank & Cabinet Construction .. 3/16" Steel Plate, A36

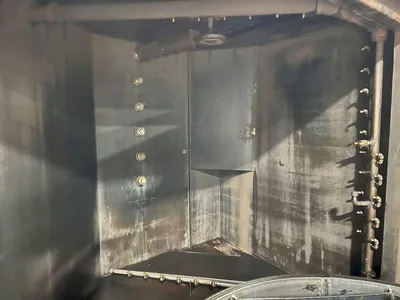

Spray Manifold ............... C-Shape
Number of Nozzles ............ 30
Wash Pump Flow ............... 280 gal/min
Wash Pump Pressure ........... 105 psi
Wash Pump Motor .............. 25 hp
Operating Temperature ........ 140-180 degree F
Electric Heat Capacity ....... 72 kW
Initial Heat-up Time ......... 1.5 - 2.5 Hours
7 Day Heating Timer .......... Yes
Wash Temperature Controls .... Yes
Rinse Temperature Controls ... Yes
Calendar Cycle Timer ......... Yes
Oil Skimmer .................. Yes
E-Stop ....................... Yes
