Jenfab Pass Thru with Curved exit belt Wash, Rinse, Dry, (Dual Dry-Off Blowers) 7" x 12"
Have one to sell?
ConditionUsed
1 available
Originally designed to clean gears can be used for multiple applications.
Just removed from service under power.
Parts enter machine from front, go through the following stages:
12" Entry
36" Wash
24" Drain
16" Rinse
12" Drain
54" Blow-Off

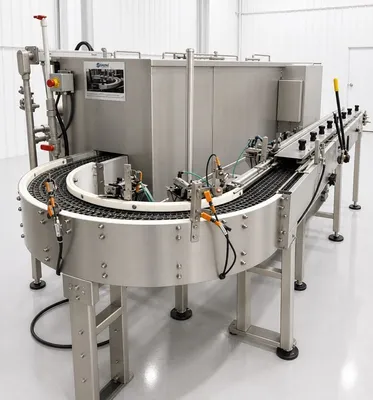

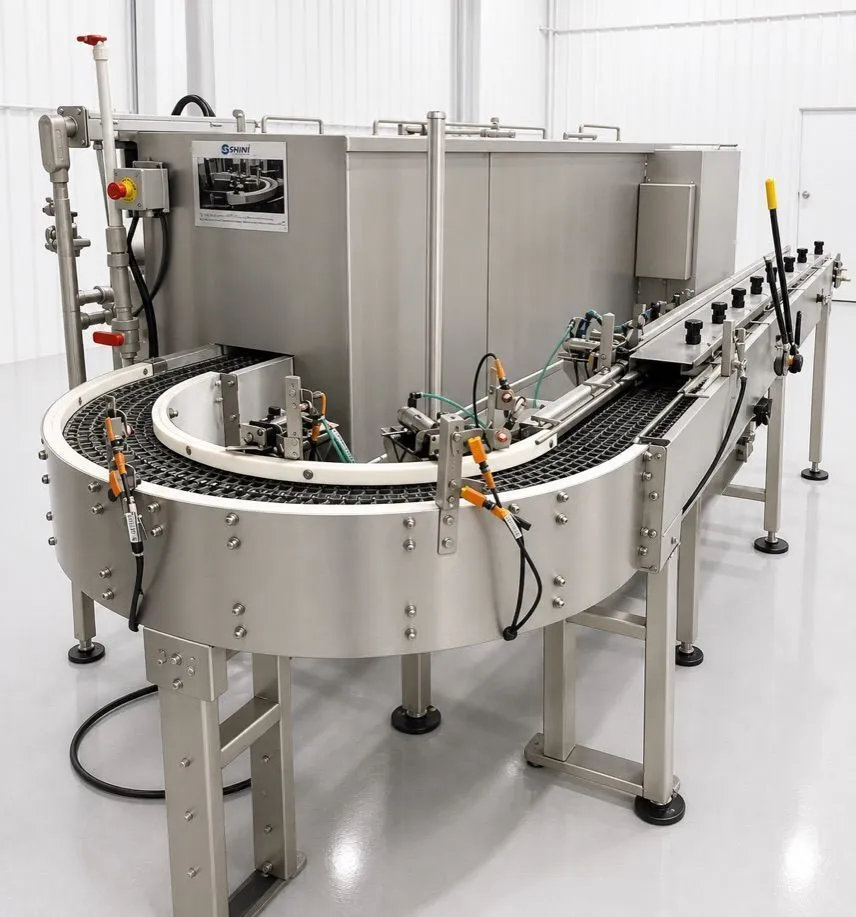

24" Exit into U-Shaped 17' Exit Conveyor
Stainless Steel on All Wetted Surfaces, Pumps, Piping etc Stainless Steel
Electric Heat 140 Deg. F. Wash and Rinse Temperatures
Heated Air Blow Off
7" WIde Belt 1x1 Inch Heavy Duty Belt
12" Part Height
190 Gallon Wash Tank, 60 GPM SS PUMP, 36 KW Electric Heat
150 Gallon Rinse Tank, 40 GPM SS PUMP, 36 KW Electric Heat
Sprays From Above, can be modified
Oil Coalscer
OverFlow/ Auto Refill
(2) 15 HP Vortex Regenerative Blowers, 20 KW Heat
Fiberglass Insulation covered with 16 Gauge Stainless steel
Filters per each stage

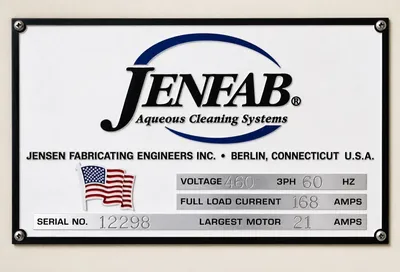

460 Volt, 3 Phase, 60 HZ, 168 FLA
Miami, OK
