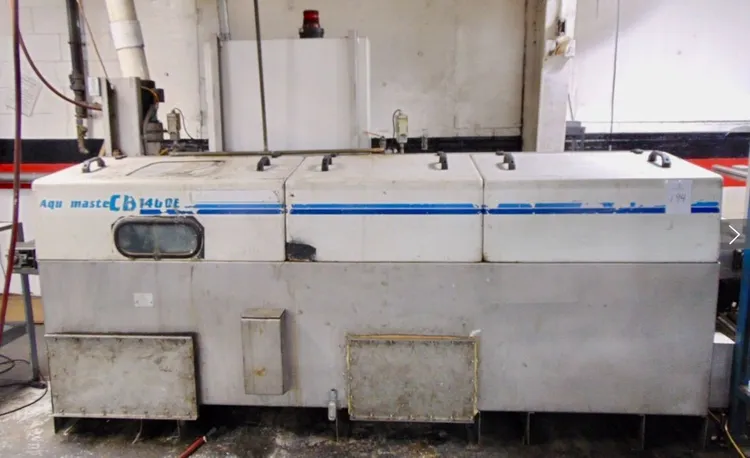

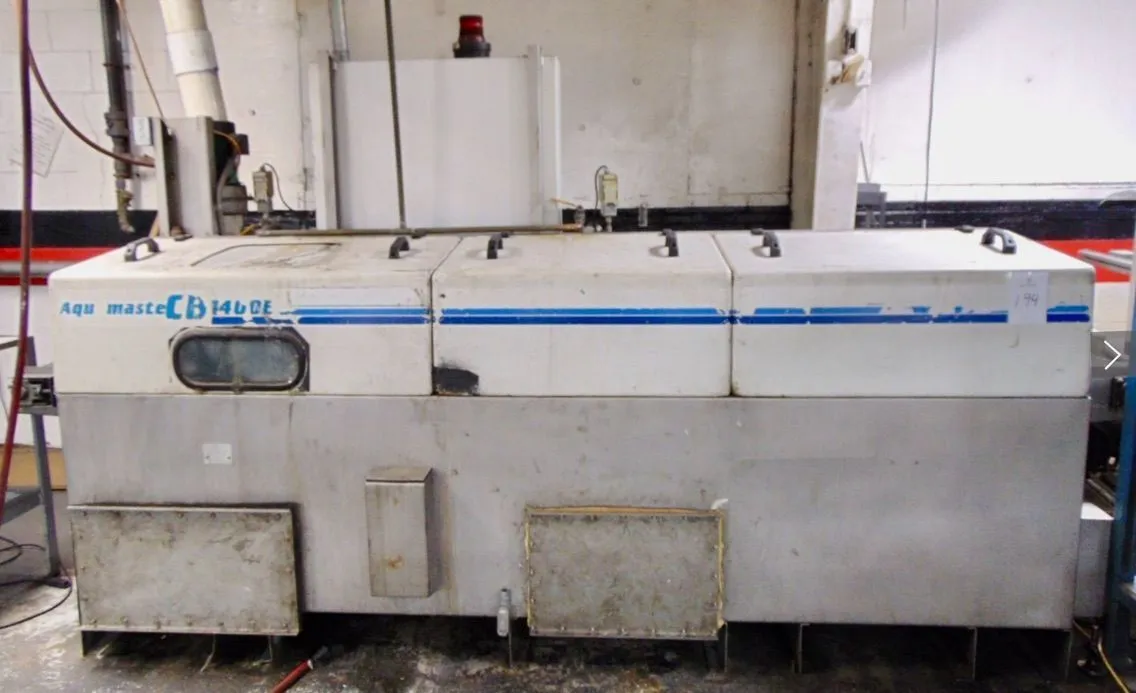

Used ALLIANCE MANUFACTURING AQUAMASTER CB-1400E | Pass-Thru Washer
Have one to sell?
ConditionUsed
1 available
Just removed from service. Plant closure.
Very good used condition.
Material Flow-Put through washer:
12" Load, 12" Vestibulte, 24" Wash, 24" Drain, 12" Rinse, 12" Drain, 39" Heated Blow-Off, 12" Unload.
Materials
Tank 12 Gauge SS
Pumps Cast Iron
Piping Black Iron
Piping Valves Bronze
Filter Chambers Carbon Steel
Fill Piping Black Iron
Fill Valves Bronze
Piping Interior Stainless
Spray Tubes Stainless
Nozzles PPRO
Conveyor Belt 1x1 Flat Wire SS Belt
Conveyor Sprockets UHMW
Conveyor Rollers Stainless
Blower Steel W/Steel Wheel
Vent Fan Stainless
Electrical:
480 Volt 3 Phase 60 HZ
Control Voltage 120 VAC
Diconnect 200A Fused @ 150A
Full Load Amps 113.2 A
Hinged Clean-out Doors
Removable Canopies
Wash Filter 25 Micron Bag
Rinse Filter 25 Micron Bag
Emergency Stop on Each End
Wash Chip Basket
Wash Over Flow
3 Float Position Level Control
Wash Pump 2 HP 35GPM@20 PSI
Rinse Pump 1.5 HP 20 GPM@ 20 PSI
Blow Off Blower 5 HP 1020 CFM@13.6" SP
Exhaust Fan 1 HP 750 CFM
Electric Heat wash and Rinse 24KW
Blower Electric Heat 18KW
Wash Tank 110 Gallon
Rinse Tank 85 Gallon
Tank O-Flow 1-1/2" NPT
Tank Drain 2" NPT
Tank Fill 1/2" NPT
