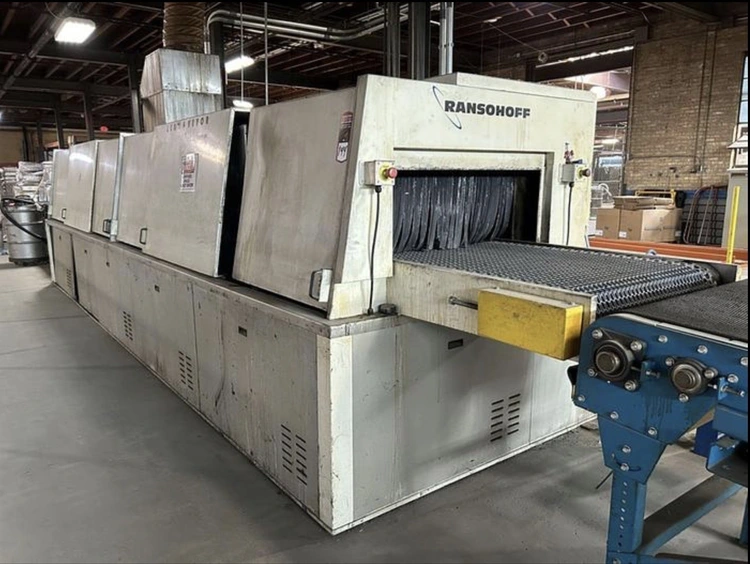

CAE Ransohoff 3 Stage Conveyor Parts Washer 36" x 14"

Originally designed to clean Sinks @ 60 Parts Per Hour

85 DBA

Work Area 36" x 14"

Nozzles Top, Sides, Botton

CONVEYOR SPEED:.................... Variable speed 1-10 FPM

CONSTRUCTION
TANKS:..........................................Stainless
HOUSING:.....................................Stainless
SOLUTION PIPING:......................Stainless- Schedule 40
FRESH WATER PIPING:..............Galvanized piping with brass float valve
INSULATION:................................1” thick
BELT:.............................................Ashworth Advantage 200 plastic mesh belt

WASH TANK
CAPACITY:................................... 350 GAL
TEMPERATURE:.......................... 150°F
CHEMISTRY:................................ 5% Evercycle ACI
FILTRATION:................................ Double length bag type stainless steel filter- 50 micron bag

RINSE TANK
CAPACITY:................................... 350 GAL
TEMPERATURE:.......................... 150°F
CHEMISTRY:................................ None
FILTRATION:................................ Single length bag type stainless steel filter- 50 micron bag

BLOWOFF
VOLUME:...................................... 4800 CFM
TEMPERATURE............................180°F

36" Load
42" Load Vestibule
36" Wash
68" Drain
36" Rinse
37" Drain
33" Blow-Off
18" Unload Vestibule
36" Unload

See layout drawing for additional information.
