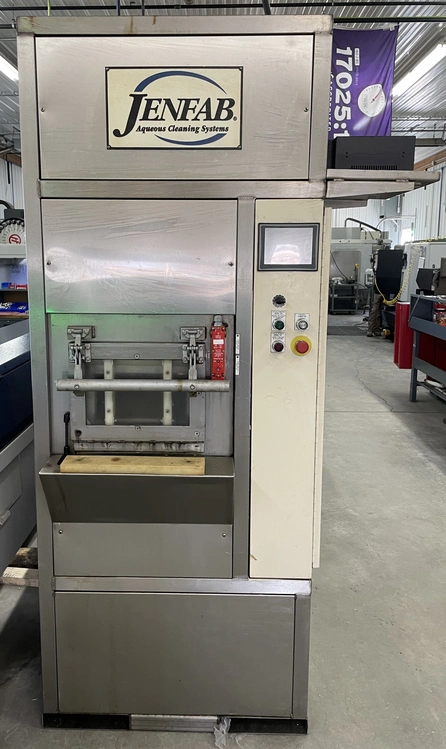

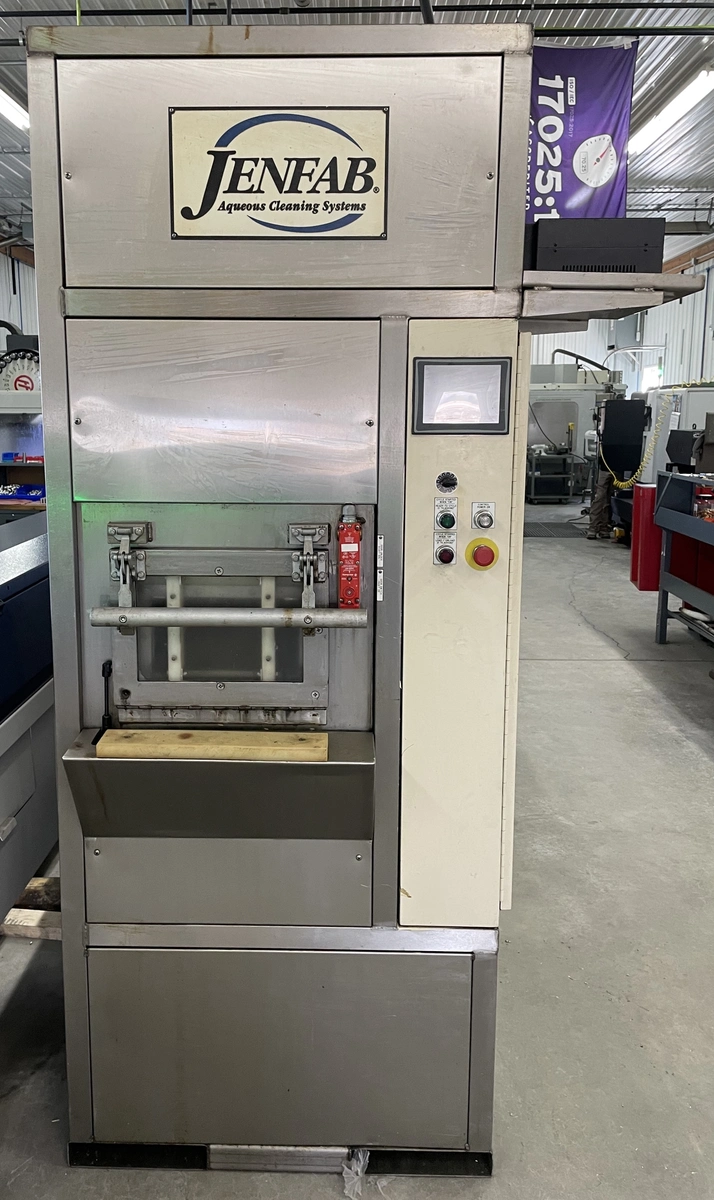

Jenfab LeanClean 360-1 Rebuilt by Jenfab in 2019Rotary Basket Washer
Jenfab Leanclean 360-1
Refurbished in 2019 by Jenfab, at time of refurb Jenfab added Dryer and Ultrasonics and performed a complete rebuild in costing close to $80,000.00.
Upgraded Tank Diverter System
Replace Rotator Bearings
Replace Load Gasket Door Plexi Glass Window and Basket Support Guides
Replaced All Gem Switch Float Valves for auto refill, and all solenoids
Added Dryer by adding fan, dryer duct, heater software
The full feature generator provides precise control of critical ultrasonic cleaning parameters. All generators come equipped with the following features:
• Auto tune feature adjusts frequency to the specific tank load assuring consistent, repeatable cleaning results under a variety of changing process parameters, such as:
o Bath temperature
o Load variations (size and weight)
• Variable power control: Cavitational power can be adjusted from 20% to 100% for matching cleaning power precisely to the application.
• Complies with FCC part 18 and CE mark.
• Cavitation Erosion of radiating surface minimized due to a solid tube design
25 kHz, 1,000 watts RMS: C
25 kHz, 2,000 watts RMS: D
UPGRADE FROM 25 kHz, 1,000 watts RMS to 25 kHz, 2,000 watts RMS. This is an additional cost added to option 13 above.
Note: We recently supplied equipment to TREMEC and are familiar with their requirements. With reference to TREMEC cleanliness specifications, Level A (F-H) calls for no particle larger than 400 microns – allowing 9 particles between 150 and 400 microns. Level B, C call for no particle larger than 600 microns; B allows 10 particles between 150 and 600 microns and C 11 particles between 150 and 600 microns.
For level B, C you can probably get away with 1,000 watts but you will have more comfort at 2,000 watts. For level A, no particle larger than 400 microns, we would definitely recommend the upgrade to 2,000 watts.
Leanclean 360-1 Features
Floor space: 3′ x 5′ 6″ x 7′ 6″
Load height: 42″
Tank volume: 75 gallons each wash, rinse
Stainless steel pumps: 60 GPM @ 40 PSI
Dryer blower: 1600 CFM recirculating
Dryer heat: 10KW 140° to 220°
Sound level: <75 DBA
Basket size: 12 x 18 x 6
Cycles per hour:6 to 10 wash/rinse/dry
Kadon Baskets 12” x 18” x 6”
25KHZ 2000 Watts Ultrasonics
460 Volts 3 Phase 65 Amps
