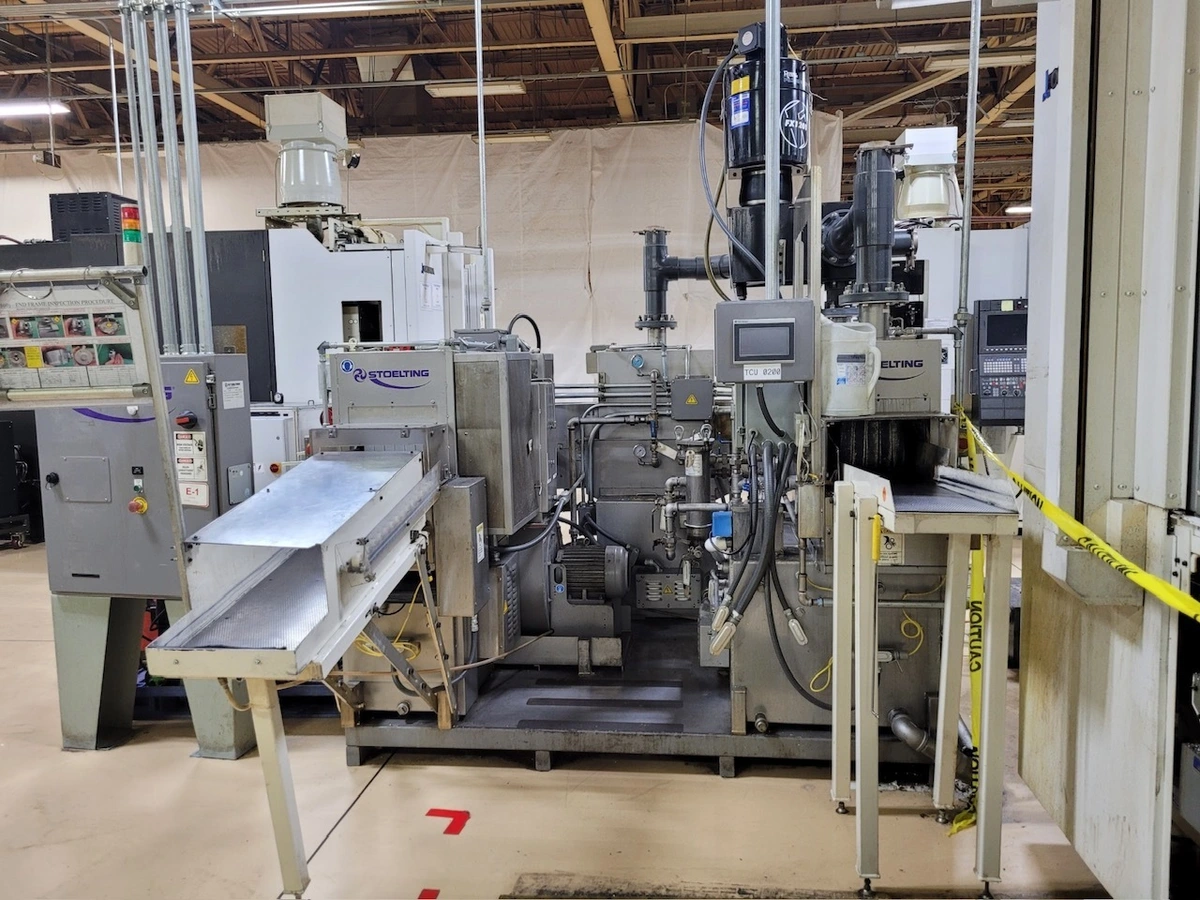

Stoelting 3 Stage VersaBend W, R, BO
Pass-Thru Washer
Construction:
Tanks 14 Gauge Stainless
Canopies 14 Gauge Stainless
Blow-Off Construction Stainless
Chip Basket Stainless
Piping Stainless
Spray Tubes Stainless
Pumps Stainless
Stages
3'-6" Wash stage
2' Rinse Stage
3'-6" Heated Blow-Off Stage
BELT
Belt Small Radius Omniflex Stainless
12" Wide 1x1/2x1x1/2" Mesh
12" Part Height
Utilities
Incoming water
Nominal 40PSI
Maximum 125 PSI
Note: Soft Water Recommended
Electrical 460 V/3Phase/60HZ
Built on Compact Stand Floor Space is 7'4" x 7'2"
Stage 1, 80 Gallon Tank 36 GPM 1-1/2 HP Pump, Electric Heat 25 KW, 140 Deg. F.
Stage 2, 40 Gallon Tank, 9 GPM, 3/4 HP Pump, Electric Heat 15 KW, 140 Deg F.
Blow Off 1000CFM, 5HP, Electric Heat 16 KW, 220 Deg. F.
Wash Solution Filtration
Krystal Klear Fitler Chamber 100 Micron Bag
Oil Skimmer Mini Belt Type
Removable Access Doors. Access Belt and Reservoir Tanks
Canopy Access swing Door
Low Level Switch
Computer Controls
