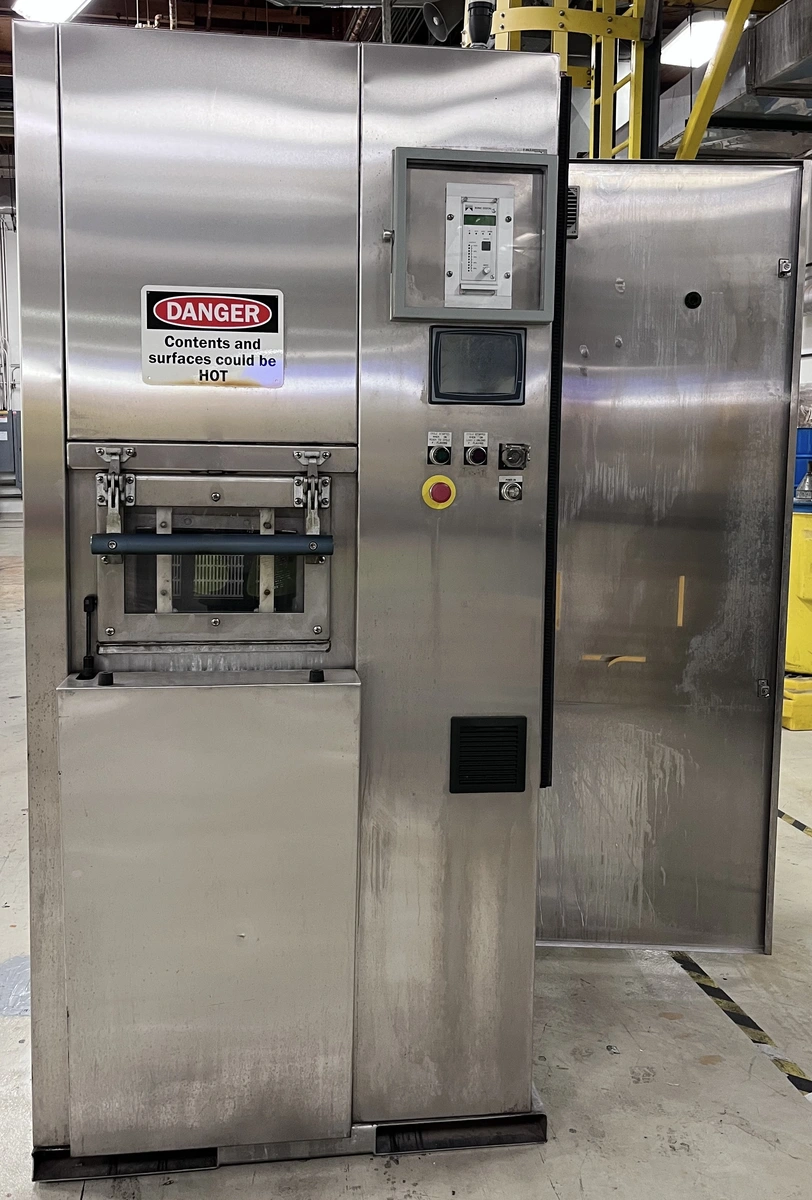

Jenfab LeanClean 360-1 with Ultrasonics and Oil Coalescer
Rotary Basket Washer
Leanclean 360-1 Features
Floor space: 3′ x 5′ 6″ x 7′ 6″
Load height: 42″
Tank volume: 70 gallons each wash, rinse
Stainless steel pumps: 60 GPM @ 40 PSI
Dryer blower: 1600 CFM recirculating
Dryer heat: 10KW 140° to 220°
Sound level: <75 DBA
Basket size: 12 x 18 x 6
Baskets: 1
Cycles per hour:6 to 10 wash/rinse/dry
Equipped with
Spray Piping all Stainless Steel with size #3 Bag Filter (50 Micron) Housings on each the Wash and Rinse lines. Pressure
gauges after filters on both lines.
Rocking Drive
Oil Coalescer and pump-out station with casters mounted below enclosure.
Drain Station
Stack Light
Horn or Audible alarm for cycle complete
Kadon Baskets 12” x 18” x 6”
Wash Tank 70 Gallon 3 HP Stainless Gould Pumps 60 GPM
Rinse Tank 70 Gallon 3 HP Stainless Gould Pumps 60 GPM
Dryer 5 HP Chicago Blower size 1400
1000 Watts Ultrasonics with Lexan Covering the Ultrasonic controls and the Rotator Speed Control
460 Volts 3 Phase 65 Amps
